MAKITA GA9060 230MM ANGLE GRINDER SPARE PARTS

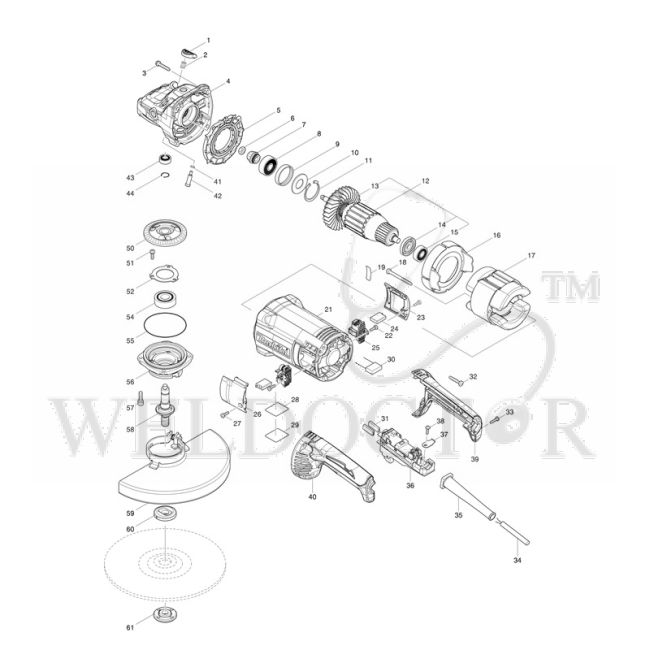

Spare Parts of Makita GA9060 Angle Grinder Ref. No. Part Name & Number Price 001 MAKITA PIN CAP FOR GA9060 P/N:456247-8 Part No.: 456247-8 $0.55 Add To Cart 002 MAKITA COMPRESSION SPRING 8 FOR GA9060 P/N:234391-9 Part No.: 234391-9 $0.22 Add To Cart 003 MAKITA TAPPING SCREW 5X30 FOR GA7060 P/N:251489-7 Part No.: 251489-7 $0.44 Add To Cart 004 MAKITA GEAR HOUSING COMPLETE FOR GA9060 P/N:143485-8 Part No.: 143485-8 $24.31 Add To Cart 005 MAKITA DIFFUSER FOR GA9060 P/N:456238-9 Part No.: 456238-9 $1.42 Add To Cart 006 MAKITA HEX NUT M8 FOR GA7020 Part No.: 252194-9 $0.33 Add To Cart 007 MAKITA SPIRAL BEVEL GEAR 13 FOR GA9060 P/N:227652-4 Part No.: 227652-4 $5.34 Add To Cart 008 MAKITA BALL BEARING 6301DDW FOR 4107R P/N:211132-0 Part No.: 211132-0 $4.14 Add To Cart 009 MAKITA RUBBER RING 38 FOR 9077 P/N:262085-6 Part No.: 262085-6 $0.33 Add To Cart 010 MAKITA FLAT WASHER 20 FOR GA7020 Part No.: 267299-2 $0.55 Add To Cart 011 MAKITA RETAINING RING FOR GA7020 Part No.: 962211-4 $1.53 Add To Cart 012 MAKITA ARMATURE ASS'Y 240V FOR GA9060R P/N:513449-0 Part No.: 513449-0 $51.78 Add To Cart 013 MAKITA FAN 86 FOR GA9060 P/N:240161-6 Part No.: 240161-6 $6.87 Add To Cart 014 MAKITA INSULATION WASHER FOR 9047 P/N:681630-2 Part No.: 681630-2 $0.44 Add To Cart 015 MAKITA BALL BEARING 6200DDW FOR 3612BR P/N:211087-9 Part No.: 211087-9 $3.27 Add To Cart 016 MAKITA BAFFLE PLATE FOR GA9060 P/N:456239-7 Part No.: 456239-7 $0.76 Add To Cart 017 MAKITA FIELD 240V FOR GA9060R P/N:621779-6 Part No.: 621779-6 $48.18 Add To Cart 018 MAKITA TAPPING SCREW FLANGE PT 5X60 FOR 9067 P/N:266044-2 Part No.: 266044-2 $0.98 Add To Cart 021 MAKITA MOTOR HOUSING FOR GA9060 P/N:456240-2 Part No.: 456240-2 $25.40 Add To Cart 022 MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6 $0.22 Add To Cart 023 MAKITA BRUSH HOLDER COVER R COMPLETE FOR GA9060 P/N:143950-7 Part No.: 143950-7 $3.49 Add To Cart 024 MAKITA CARBON BRUSH CB-218 Part No.: 197129-2 $5.01 Add To Cart 026 MAKITA BRUSH HOLDER COVER L COMPLETE FOR GA9060 P/N:143949-2 Part No.: 143949-2 $2.83 Add To Cart 027 MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6 $0.22 Add To Cart 031 MAKITA RECEPTABLE SLEEVE P/N:686036-9 Part No.: 686036-9 $0.33 Add To Cart 032 MAKITA TAPPING SCREW 5X30 FOR GA7060 P/N:251489-7 Part No.: 251489-7 $0.44 Add To Cart 034 MAKITA POWER SUPPLY CORD 1.5-2-2.5 P/N:692607-2 Part No.: 692607-2 $16.79 Add To Cart 035 MAKITA CORD GUARD 10 FOR GA7010C HR2810 P/N:682573-1 Part No.: 682573-1 $0.87 Add To Cart 036 MAKITA SWITCH UNIT FOR GA9060 P/N:632F74-5 Part No.: 632F74-5 $15.59 Add To Cart 037 MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3 $0.44 Add To Cart 038 MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6 $0.22 Add To Cart 039 MAKITA HANDLE SET FOR GA9060 P/N:183C63-0 Part No.: 183C63-0 $9.05 Add To Cart 040 MAKITA HANDLE SET FOR GA9060 P/N:183C63-0 Part No.: 183C63-0 $9.05 Add To Cart 041 MAKITA O RING 7 FOR GA7010C P/N:213026-5 Part No.: 213026-5 $0.33 Add To Cart 042 MAKITA SHOULDER PIN 7 FOR GA9060 P/N:256571-7 Part No.: 256571-7 $0.98 Add To Cart 043 MAKITA BALL BEARING 608ZZ FOR N1900B P/N:211032-4 Part No.: 211032-4 $1.42 Add To Cart 044 MAKITA RING SPRING 13 FOR MT603 P/N:233925-5 Part No.: 233925-5 $0.22 Add To Cart 050 MAKITA SPIRAL BEVEL GEAR 54 FOR GA9060 P/N:227653-2 Part No.: 227653-2 $12.97 Add To Cart 051 MAKITA PAN HEAD SCREW M5X16 FOR GA7020 Part No.: 265120-9 $0.33 Add To Cart 052 MAKITA BEARING RETAINER 50 FOR GA9060 P/N:285741-1 Part No.: 285741-1 $0.87 Add To Cart 054 MAKITA BALL BEARING 6203DDW FOR 4107R/9067 P/N:211278-2 Part No.: 211278-2 $4.03 Add To Cart 055 MAKITA O RING 78 FOR GA7020 Part No.: 213760-7 $0.44 Add To Cart 056 MAKITA BEARING BOX FOR GA9060 P/N:319351-3 Part No.: 319351-3 $7.19 Add To Cart 057 MAKITA HEX SOCKET HEAD BOLT FOR GA7020 Part No.: 265541-5 $0.33 Add To Cart 058 MAKITA SPINDLE COMPLETE FOR GA9060 P/N:143484-0 Part No.: 143484-0 $5.78 Add To Cart 061 MAKITA LOCK NUT 14-45 FOR GA7060 P/N:224485-8 Part No.: 224485-8 $2.94 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PIN CAP FOR GA9060 P/N:456247-8 Part No.: 456247-8
• 002: MAKITA COMPRESSION SPRING 8 FOR GA9060 P/N:234391-9 Part No.: 234391-9
• 003: MAKITA TAPPING SCREW 5X30 FOR GA7060 P/N:251489-7 Part No.: 251489-7
• 004: MAKITA GEAR HOUSING COMPLETE FOR GA9060 P/N:143485-8 Part No.: 143485-8
• 005: MAKITA DIFFUSER FOR GA9060 P/N:456238-9 Part No.: 456238-9
• 006: MAKITA HEX NUT M8 FOR GA7020 Part No.: 252194-9
• 007: MAKITA SPIRAL BEVEL GEAR 13 FOR GA9060 P/N:227652-4 Part No.: 227652-4
• 008: MAKITA BALL BEARING 6301DDW FOR 4107R P/N:211132-0 Part No.: 211132-0
• 009: MAKITA RUBBER RING 38 FOR 9077 P/N:262085-6 Part No.: 262085-6
• 010: MAKITA FLAT WASHER 20 FOR GA7020 Part No.: 267299-2
• 011: MAKITA RETAINING RING FOR GA7020 Part No.: 962211-4
• 012: MAKITA ARMATURE ASS'Y 240V FOR GA9060R P/N:513449-0 Part No.: 513449-0
• 013: MAKITA FAN 86 FOR GA9060 P/N:240161-6 Part No.: 240161-6
• 014: MAKITA INSULATION WASHER FOR 9047 P/N:681630-2 Part No.: 681630-2
• 015: MAKITA BALL BEARING 6200DDW FOR 3612BR P/N:211087-9 Part No.: 211087-9
• 016: MAKITA BAFFLE PLATE FOR GA9060 P/N:456239-7 Part No.: 456239-7
• 017: MAKITA FIELD 240V FOR GA9060R P/N:621779-6 Part No.: 621779-6
• 018: MAKITA TAPPING SCREW FLANGE PT 5X60 FOR 9067 P/N:266044-2 Part No.: 266044-2
• 021: MAKITA MOTOR HOUSING FOR GA9060 P/N:456240-2 Part No.: 456240-2
• 022: MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6
• 023: MAKITA BRUSH HOLDER COVER R COMPLETE FOR GA9060 P/N:143950-7 Part No.: 143950-7
• 024: MAKITA CARBON BRUSH CB-218 Part No.: 197129-2
• 026: MAKITA BRUSH HOLDER COVER L COMPLETE FOR GA9060 P/N:143949-2 Part No.: 143949-2
• 027: MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6
• 031: MAKITA RECEPTABLE SLEEVE P/N:686036-9 Part No.: 686036-9
• 032: MAKITA TAPPING SCREW 5X30 FOR GA7060 P/N:251489-7 Part No.: 251489-7
• 034: MAKITA POWER SUPPLY CORD 1.5-2-2.5 P/N:692607-2 Part No.: 692607-2
• 035: MAKITA CORD GUARD 10 FOR GA7010C HR2810 P/N:682573-1 Part No.: 682573-1
• 036: MAKITA SWITCH UNIT FOR GA9060 P/N:632F74-5 Part No.: 632F74-5
• 037: MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3
• 038: MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6
• 039: MAKITA HANDLE SET FOR GA9060 P/N:183C63-0 Part No.: 183C63-0
• 040: MAKITA HANDLE SET FOR GA9060 P/N:183C63-0 Part No.: 183C63-0
• 041: MAKITA O RING 7 FOR GA7010C P/N:213026-5 Part No.: 213026-5
• 042: MAKITA SHOULDER PIN 7 FOR GA9060 P/N:256571-7 Part No.: 256571-7
• 043: MAKITA BALL BEARING 608ZZ FOR N1900B P/N:211032-4 Part No.: 211032-4
• 044: MAKITA RING SPRING 13 FOR MT603 P/N:233925-5 Part No.: 233925-5
• 050: MAKITA SPIRAL BEVEL GEAR 54 FOR GA9060 P/N:227653-2 Part No.: 227653-2
• 051: MAKITA PAN HEAD SCREW M5X16 FOR GA7020 Part No.: 265120-9
