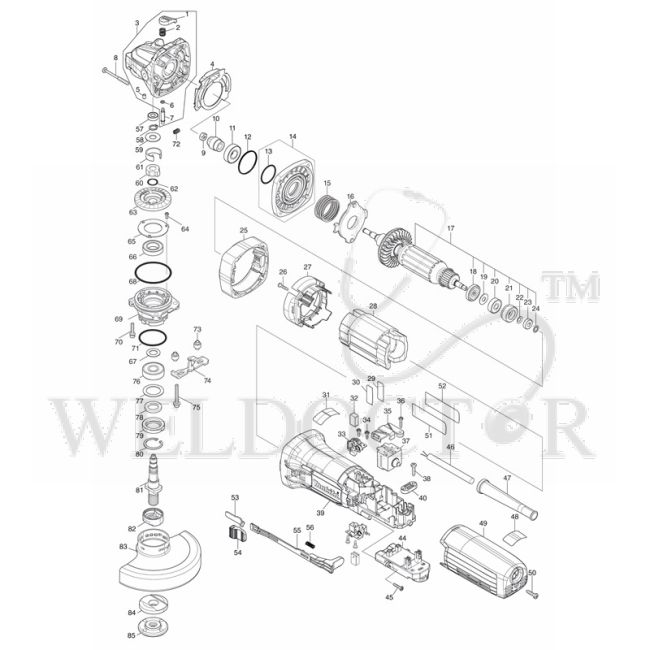

MAKITA GA5091 125MM ANGLE GRINDER SPARE PARTS

Spare Parts of Makita GA5091 Angle Grinder Ref. No. Part Name & Number Price 001 MAKITA PIN CAP FOR GA4040 P/N:453369-5 Part No.: 453369-5 $0.55 Add To Cart 002 MAKITA COMPRESSION SPRING 7 FOR CA5000 P/N:234057-1 Part No.: 234057-1 $0.11 Add To Cart 003 MAKITA GEAR HOUSING ASS'Y FOR GA5093 P/N:136770-6 Part No.: 136770-6 $16.90 Add To Cart 004 MAKITA DIFFUSER FOR GA5090 P/N:413C06-1 Part No.: 413C06-1 $0.65 Add To Cart 005 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 006 MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0 $0.22 Add To Cart 007 MAKITA SHOULDER PIN 6 FOR GA4040 P/N:256535-1 Part No.: 256535-1 $0.76 Add To Cart 008 MAKITA TAPPING SCREW 4*50 P/N:266467-4 Part No.: 266467-4 $0.33 Add To Cart 009 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 010 MAKITA SPIRAL BEVEL GEAR 11 FOR GA5090 P/N:227916-6 Part No.: 227916-6 $5.12 Add To Cart 011 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 012 MAKITA RUBBER PLATE FOR GA5090 P/N:422812-5 Part No.: 422812-5 $0.22 Add To Cart 014 MAKITA GEAR HOUSING COVER FOR GA5091 P/N:136771-4 Part No.: 136771-4 $5.89 Add To Cart 015 MAKITA COMPRESSION SPRING 33 FOR GA4041C P/N:234230-3 Part No.: 234230-3 $0.22 Add To Cart 016 MAKITA BRAKE SHOE HOLDER COMPLETE FOR GA4041C P/N:141515-9 Part No.: 141515-9 $15.48 Add To Cart 017 MAKITA ARMATURE ASS'Y 240V FOR GA4591 P/N:511A44-6 Part No.: 511A44-6 $69.87 Add To Cart 018 MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4 $0.55 Add To Cart 019 MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7 $0.33 Add To Cart 020 MAKITA BALL BEARING 627DDW FOR GA4040 P/N:210027-4 Part No.: 210027-4 $3.49 Add To Cart 022 MAKITA WAVE WASHER 6 FOR 4340CT P/N:267756-0 Part No.: 267756-0 $0.33 Add To Cart 023 MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5 $2.18 Add To Cart 024 MAKITA SELF LOOK 6 FOR GD0800C P/N:259039-2 Part No.: 259039-2 $0.22 Add To Cart 025 MAKITA SPACER FOR GA5091 P/N:413C05-3 Part No.: 413C05-3 $2.83 Add To Cart 026 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 027 MAKITA BAFFLE PLATE B FOR GA5090 P/N:413C08-7 Part No.: 413C08-7 $1.53 Add To Cart 028 MAKITA FIELD 220-240V FOR GA5090 P/N:621968-3 Part No.: 621968-3 $37.61 Add To Cart 033 MAKITA BRUSH HOLDER FOR GA5090 P/N:644011-1 Part No.: 644011-1 $1.85 Add To Cart 034 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart 035 MAKITA SWITCH COVER FOR GA5090 P/N:413G29-3 Part No.: 413G29-3 $0.65 Add To Cart 036 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 037 MAKITA SWITCH FPC-2115T-0-02 FOR GA5090 P/N:650028-4 Part No.: 650028-4 $10.36 Add To Cart 039 MAKITA MOTOR HOUSING B FOR GA5091 P/N:413C01-1 Part No.: 413C01-1 $7.09 Add To Cart 040 MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7 $0.33 Add To Cart 044 MAKITA CONTROLLER FOR GA4091 P/N:620H27-8 Part No.: 620H27-8 $77.50 Add To Cart 045 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 046 MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2 $9.92 Add To Cart 047 MAKITA CORD GUARD FOR GA4590 P/N:682116-9 Part No.: 682116-9 $0.76 Add To Cart 049 MAKITA REAR COVER C FOR GA5090 P/N:413C02-9 Part No.: 413C02-9 $2.83 Add To Cart 053 MAKITA SWITCH PLATE FOR GA5091 P/N:347908-0 Part No.: 347908-0 $1.31 Add To Cart 054 MAKITA SWITCH KONB B FOR GA5091 P/N:413C04-5 Part No.: 413C04-5 $0.44 Add To Cart 055 MAKITA SWITCH LEVER FOR GA5090 P/N:413C03-7 Part No.: 413C03-7 $0.76 Add To Cart 056 MAKITA SPRING 4 FOR DC/AC-GA P/N:233121-5 Part No.: 233121-5 $0.11 Add To Cart 057 MAKITA BALL BEARING 696ZZ P/N:210026-6 Part No.: 210026-6 $3.27 Add To Cart 058 MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2 $0.33 Add To Cart 059 MAKITA FLAT WASHER 10 P/N:253180-3 Part No.: 253180-3 $0.44 Add To Cart 060 MAKITA JOINT SLEEVE FOR GA5090 P/N:327918-3 Part No.: 327918-3 $1.64 Add To Cart 061 MAKITA C TYPE PLATE FOR GA5090 P/N:347911-1 Part No.: 347911-1 $2.18 Add To Cart 062 MAKITA O RING 12 FOR HP2070 Part No.: 213122-9 $0.33 Add To Cart 063 MAKITA SPIRAL BEVEL GEAR 38 FOR GA5090 P/N:227917-4 Part No.: 227917-4 $13.84 Add To Cart 065 MAKITA BEARING RETAINER 27-46 FOR GA5090 P/N:285048-5 Part No.: 285048-5 $0.44 Add To Cart 066 MAKITA BALL BEARING 6903ZZ FOR GA4040 P/N:210302-8 Part No.: 210302-8 $7.52 Add To Cart 067 MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3 $0.33 Add To Cart 068 MAKITA O RING 51 FOR GA4040 P/N:213641-5 Part No.: 213641-5 $0.44 Add To Cart 069 MAKITA BEARING BOX B FOR GA5091 P/N:312C11-4 Part No.: 312C11-4 $12.64 Add To Cart 070 MAKITA H.S. HEAD BOLT M4X20 WITH WR FOR MT860 P/N:266948-8 Part No.: 266948-8 $0.44 Add To Cart 072 MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1 $0.22 Add To Cart 073 MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6 $0.76 Add To Cart 074 MAKITA LEVER B FOR GA5091 P/N:347910-3 Part No.: 347910-3 $2.62 Add To Cart 075 MAKITA HEX.SOCKET HEAD BOLT M4*35 P/N:265C21-9 Part No.: 265C21-9 $0.55 Add To Cart 077 MAKITA FLAT WASHER 21 FOR HR2450T P/N:267279-8 Part No.: 267279-8 $0.33 Add To Cart 078 MAKITA FELT RING 17 FOR MT910 P/N:443124-3 Part No.: 443124-3 $0.44 Add To Cart 079 MAKITA BEARING RETAINER FOR GA4040 P/N:285854-8 Part No.: 285854-8 $1.31 Add To Cart 080 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 081 MAKITA SPINDLE FOR GA5091 P/N:327917-5 Part No.: 327917-5 $9.92 Add To Cart 082 MAKITA LEAD FLANGE FOR GA013G P/N:310514-4 Part No.: 310514-4 $9.16 Add To Cart 084 MAKITA INNER FLANGE 42B FOR GA5041C P/N:224447-6 Part No.: 224447-6 $5.45 Add To Cart 085 MAKITA LOCK NUT 14-45 FOR GA7060 P/N:224485-8 Part No.: 224485-8 $2.94 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PIN CAP FOR GA4040 P/N:453369-5 Part No.: 453369-5
• 002: MAKITA COMPRESSION SPRING 7 FOR CA5000 P/N:234057-1 Part No.: 234057-1
• 003: MAKITA GEAR HOUSING ASS'Y FOR GA5093 P/N:136770-6 Part No.: 136770-6
• 004: MAKITA DIFFUSER FOR GA5090 P/N:413C06-1 Part No.: 413C06-1
• 005: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 006: MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0
• 007: MAKITA SHOULDER PIN 6 FOR GA4040 P/N:256535-1 Part No.: 256535-1
• 008: MAKITA TAPPING SCREW 4*50 P/N:266467-4 Part No.: 266467-4
• 009: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 010: MAKITA SPIRAL BEVEL GEAR 11 FOR GA5090 P/N:227916-6 Part No.: 227916-6
• 011: MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2
• 012: MAKITA RUBBER PLATE FOR GA5090 P/N:422812-5 Part No.: 422812-5
• 014: MAKITA GEAR HOUSING COVER FOR GA5091 P/N:136771-4 Part No.: 136771-4
• 015: MAKITA COMPRESSION SPRING 33 FOR GA4041C P/N:234230-3 Part No.: 234230-3
• 016: MAKITA BRAKE SHOE HOLDER COMPLETE FOR GA4041C P/N:141515-9 Part No.: 141515-9
• 017: MAKITA ARMATURE ASS'Y 240V FOR GA4591 P/N:511A44-6 Part No.: 511A44-6
• 018: MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4
• 019: MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7
• 020: MAKITA BALL BEARING 627DDW FOR GA4040 P/N:210027-4 Part No.: 210027-4
• 022: MAKITA WAVE WASHER 6 FOR 4340CT P/N:267756-0 Part No.: 267756-0
• 023: MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5
• 024: MAKITA SELF LOOK 6 FOR GD0800C P/N:259039-2 Part No.: 259039-2
• 025: MAKITA SPACER FOR GA5091 P/N:413C05-3 Part No.: 413C05-3
• 026: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 027: MAKITA BAFFLE PLATE B FOR GA5090 P/N:413C08-7 Part No.: 413C08-7
• 028: MAKITA FIELD 220-240V FOR GA5090 P/N:621968-3 Part No.: 621968-3
• 033: MAKITA BRUSH HOLDER FOR GA5090 P/N:644011-1 Part No.: 644011-1
• 034: MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8
• 035: MAKITA SWITCH COVER FOR GA5090 P/N:413G29-3 Part No.: 413G29-3
• 036: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 037: MAKITA SWITCH FPC-2115T-0-02 FOR GA5090 P/N:650028-4 Part No.: 650028-4
• 039: MAKITA MOTOR HOUSING B FOR GA5091 P/N:413C01-1 Part No.: 413C01-1
• 040: MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7
• 044: MAKITA CONTROLLER FOR GA4091 P/N:620H27-8 Part No.: 620H27-8
• 045: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 046: MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2
• 047: MAKITA CORD GUARD FOR GA4590 P/N:682116-9 Part No.: 682116-9
• 049: MAKITA REAR COVER C FOR GA5090 P/N:413C02-9 Part No.: 413C02-9
• 053: MAKITA SWITCH PLATE FOR GA5091 P/N:347908-0 Part No.: 347908-0
