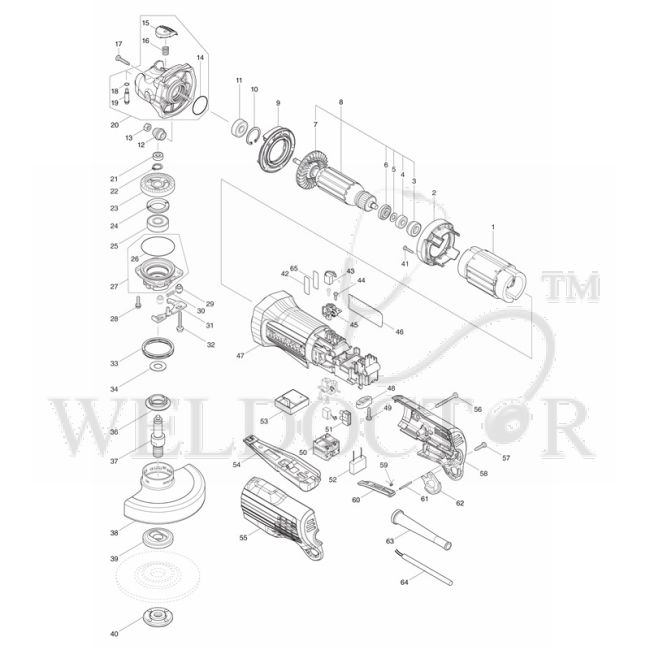

MAKITA GA5050R 125MM ANGLE GRINDER SPARE PARTS

Spare Parts of Makita GA5050R Angle Grinder Ref. No. Part Name & Number Price 001 MAKITA FIELD 240V FOR GA4050/5051R P/N:634734-9 Part No.: 634734-9 $35.53 Add To Cart 002 MAKITA BAFFLE PLATE P/N:459003-5 Part No.: 459003-5 $0.98 Add To Cart 004 MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7 $2.73 Add To Cart 005 MAKITA FLAT WASHER 7 FOR HR160DWA P/N:253186-1 Part No.: 253186-1 $0.22 Add To Cart 006 MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0 $0.33 Add To Cart 008 MAKITA ARMATURE ASS'Y 240V GA5050 P/N:517994-7 Part No.: 517994-7 $36.52 Add To Cart 009 MAKITA DIFFUSER P/N:459004-3 Part No.: 459004-3 $0.98 Add To Cart 010 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 011 MAKITA BALL BEARING 629DDW FOR 3612C BO4556 P/N:211092-6 Part No.: 211092-6 $2.40 Add To Cart 012 MAKITA SPIRAL BEVEL GEAR 10 P/N:226858-1 Part No.: 226858-1 $2.94 Add To Cart 013 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 014 MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5 $0.33 Add To Cart 017 MAKITA TAPPING SCREW 4X22MM FOR GA4030 Part No.: 266324-6 $0.11 Add To Cart 020 MAKITA GEAR HOUSING B ASS'Y FOR GA4050/ 5051R P/N:136144-1 Part No.: 136144-1 $18.64 Add To Cart 022 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 023 MAKITA SPIRAL BEVEL GEAR 37 P/N:226859-9 Part No.: 226859-9 $7.96 Add To Cart 024 MAKITA BEARING RETAINER 23-33 P/N:285039-6 Part No.: 285039-6 $1.09 Add To Cart 026 MAKITA O RING 48 FOR GA5010 P/N:213624-5 Part No.: 213624-5 $0.33 Add To Cart 027 MAKITA BEARING BOX A FOR GA4050/5050R P/N:136141-7 Part No.: 136141-7 $3.27 Add To Cart 028 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 029 MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6 $0.76 Add To Cart 030 MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1 $0.22 Add To Cart 031 MAKITA LEVER P/N:347475-5 Part No.: 347475-5 $1.85 Add To Cart 032 MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7 $0.22 Add To Cart 033 MAKITA SCROW WAVE SPRING 41 XGT-GA P/N:232542-8 Part No.: 232542-8 $3.82 Add To Cart 034 MAKITA FLAT WASHER 12 FOR MT950 P/N:267238-2 Part No.: 267238-2 $0.11 Add To Cart 036 MAKITA PLATE RETAINER 20 P/N:319789-2 Part No.: 319789-2 $1.64 Add To Cart 037 MAKITA SPINDLE P/N:327241-6 Part No.: 327241-6 $3.05 Add To Cart 039 MAKITA INNER FLANGE 14-45 FOR GA 5"-9" P/N:224490-5 Part No.: 224490-5 $1.74 Add To Cart 040 MAKITA LOCK NUT 14-45 FOR GA7060 P/N:224485-8 Part No.: 224485-8 $2.94 Add To Cart 041 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 044 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart 045 MAKITA BRUSH HOLDER P/N:643541-9 Part No.: 643541-9 $2.51 Add To Cart 047 MAKITA MOTOR HOUSING FOR GA4050/5051R P/N:458999-7 Part No.: 458999-7 $5.23 Add To Cart 048 MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7 $0.33 Add To Cart 050 MAKITA SWITCH FOR 9666PB (AC/DC) P/N:650579-7 Part No.: 650579-7 $4.80 Add To Cart 051 MAKITA TERMINAL BLOCK 1P FOR 5806B BO4556 P/N:654532-5 Part No.: 654532-5 $0.55 Add To Cart 053 MAKITA CONTROLLER FOR GA4050/5051R P/N:620951-7 Part No.: 620951-7 $27.25 Add To Cart 054 MAKITA SWITCH LEVER FOR GA4050R/5051R P/N:162540-7 Part No.: 162540-7 $5.23 Add To Cart 055 MAKITA REAR COVER SET P/N:183M68-0 Part No.: 183M68-0 $4.14 Add To Cart 056 MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4 $0.44 Add To Cart 058 MAKITA REAR COVER SET P/N:183M68-0 Part No.: 183M68-0 $4.14 Add To Cart 059 MAKITA TORSION SPRING 2 P/N:232492-7 Part No.: 232492-7 $0.22 Add To Cart 060 MAKITA SWICH LINK LEVER P/N:459005-1 Part No.: 459005-1 $0.76 Add To Cart 061 MAKITA PIN 2 P/N:256595-3 Part No.: 256595-3 $0.33 Add To Cart 062 MAKITA STRAP RING P/N:347476-3 Part No.: 347476-3 $2.18 Add To Cart 063 MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5 $0.76 Add To Cart 064 MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2 $9.92 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA FIELD 240V FOR GA4050/5051R P/N:634734-9 Part No.: 634734-9
• 002: MAKITA BAFFLE PLATE P/N:459003-5 Part No.: 459003-5
• 004: MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7
• 005: MAKITA FLAT WASHER 7 FOR HR160DWA P/N:253186-1 Part No.: 253186-1
• 006: MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0
• 008: MAKITA ARMATURE ASS'Y 240V GA5050 P/N:517994-7 Part No.: 517994-7
• 009: MAKITA DIFFUSER P/N:459004-3 Part No.: 459004-3
• 010: MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3
• 011: MAKITA BALL BEARING 629DDW FOR 3612C BO4556 P/N:211092-6 Part No.: 211092-6
• 012: MAKITA SPIRAL BEVEL GEAR 10 P/N:226858-1 Part No.: 226858-1
• 013: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 014: MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5
• 017: MAKITA TAPPING SCREW 4X22MM FOR GA4030 Part No.: 266324-6
• 020: MAKITA GEAR HOUSING B ASS'Y FOR GA4050/ 5051R P/N:136144-1 Part No.: 136144-1
• 022: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 023: MAKITA SPIRAL BEVEL GEAR 37 P/N:226859-9 Part No.: 226859-9
• 024: MAKITA BEARING RETAINER 23-33 P/N:285039-6 Part No.: 285039-6
• 026: MAKITA O RING 48 FOR GA5010 P/N:213624-5 Part No.: 213624-5
• 027: MAKITA BEARING BOX A FOR GA4050/5050R P/N:136141-7 Part No.: 136141-7
• 028: MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8
• 029: MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6
• 030: MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1
• 031: MAKITA LEVER P/N:347475-5 Part No.: 347475-5
• 032: MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7
• 033: MAKITA SCROW WAVE SPRING 41 XGT-GA P/N:232542-8 Part No.: 232542-8
• 034: MAKITA FLAT WASHER 12 FOR MT950 P/N:267238-2 Part No.: 267238-2
• 036: MAKITA PLATE RETAINER 20 P/N:319789-2 Part No.: 319789-2
• 037: MAKITA SPINDLE P/N:327241-6 Part No.: 327241-6
• 039: MAKITA INNER FLANGE 14-45 FOR GA 5"-9" P/N:224490-5 Part No.: 224490-5
• 040: MAKITA LOCK NUT 14-45 FOR GA7060 P/N:224485-8 Part No.: 224485-8
• 041: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 044: MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8
• 045: MAKITA BRUSH HOLDER P/N:643541-9 Part No.: 643541-9
• 047: MAKITA MOTOR HOUSING FOR GA4050/5051R P/N:458999-7 Part No.: 458999-7
• 048: MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7
• 050: MAKITA SWITCH FOR 9666PB (AC/DC) P/N:650579-7 Part No.: 650579-7
• 051: MAKITA TERMINAL BLOCK 1P FOR 5806B BO4556 P/N:654532-5 Part No.: 654532-5
• 053: MAKITA CONTROLLER FOR GA4050/5051R P/N:620951-7 Part No.: 620951-7
• 054: MAKITA SWITCH LEVER FOR GA4050R/5051R P/N:162540-7 Part No.: 162540-7
