MAKITA GA048G 100MM CORDLESS ANGLE GRINDER SPARE PARTS

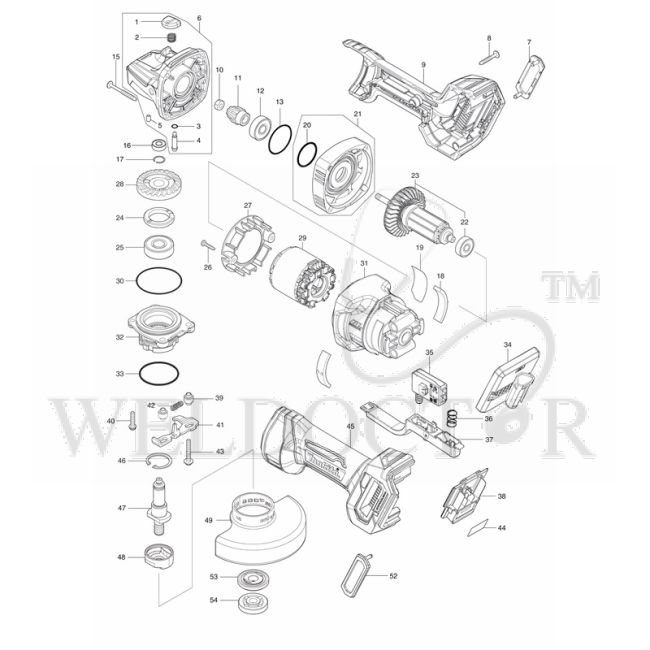

Spare Parts of Makita GA048G Angle Grinder Ref. No. Part Name & Number Price 001 MAKITA PIN CAP FOR GA003G P/N:412234-7 Part No.: 412234-7 $0.44 Add To Cart 003 MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9 $0.11 Add To Cart 004 MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6 $0.55 Add To Cart 005 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 006 MAKITA GEAR HOUSING ASS'Y FOR GA048G P/N:136986-3 Part No.: 136986-3 $14.28 Add To Cart 007 MAKITA DUST COVER FOR GA050G P/N:422A12-3 Part No.: 422A12-3 $1.53 Add To Cart 008 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart 009 MAKITA HANDLE SET FOR GA048G P/N:183Y56-9 Part No.: 183Y56-9 $25.83 Add To Cart 010 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 011 MAKITA SPIRAL BEVEL GEAR 10 FOR XGT-GA P/N:226976-5 Part No.: 226976-5 $5.12 Add To Cart 012 MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8 $2.62 Add To Cart 013 MAKITA O RING 32 P/N:213A32-6 Part No.: 213A32-6 $0.44 Add To Cart 015 MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4 $0.44 Add To Cart 017 MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6 $0.11 Add To Cart 018 MAKITA FRONT CUSHION FOR GA050G P/N:422A10-7 Part No.: 422A10-7 $0.55 Add To Cart 020 MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5 $0.33 Add To Cart 021 MAKITA GEAR HOUSING COVER ASS'Y FOR GA048G P/N:136989-7 Part No.: 136989-7 $6.76 Add To Cart 022 MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2 $2.07 Add To Cart 023 MAKITA ROTOR ASS'Y FOR GA048G P/N:519810-9 Part No.: 519810-9 $40.88 Add To Cart 024 MAKITA BEARING RETAINER 23-33 P/N:285039-6 Part No.: 285039-6 $1.09 Add To Cart 025 MAKITA BALL BEARING 6201LLU FOR 4140 P/N:211137-0 Part No.: 211137-0 $4.14 Add To Cart 026 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 027 MAKITA BAFFLE PLATE FOR GA048G P/N:413P41-7 Part No.: 413P41-7 $1.53 Add To Cart 028 MAKITA SPIRAL BEVEL GEAR 37 FOR GA050G P/N:227A65-5 Part No.: 227A65-5 $5.34 Add To Cart 029 MAKITA STATOR FOR GA048-51G P/N:629C11-0 Part No.: 629C11-0 $47.52 Add To Cart 030 MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9 $0.33 Add To Cart 031 MAKITA MOTOR HOUSING SET FOR GA048G P/N:1830B1-8 Part No.: 1830B1-8 $8.18 Add To Cart 032 MAKITA BEARING BOX COMPLETE FOR GA050G P/N:141N73-9 Part No.: 141N73-9 $9.16 Add To Cart 034 MAKITA CONTROLLER FOR GA048G P/N:620L32-9 Part No.: 620L32-9 $142.68 Add To Cart 035 MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9 $18.42 Add To Cart 036 MAKITA COMPRESSION SPRING 9 FOR GA009G P/N:233263-5 Part No.: 233263-5 $0.55 Add To Cart 037 MAKITA SWITCH LEVER COMPLETE FOR GA050G P/N:141N71-3 Part No.: 141N71-3 $4.91 Add To Cart 038 MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6 $8.50 Add To Cart 039 MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6 $0.76 Add To Cart 040 MAKITA PAN HEAD SCREW M4X20 P/N:911138-5 Part No.: 911138-5 $0.33 Add To Cart 041 MAKITA LEVER P/N:347803-4 Part No.: 347803-4 $2.51 Add To Cart 042 MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1 $0.22 Add To Cart 043 MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7 $0.22 Add To Cart 045 MAKITA HANDLE SET FOR GA048G P/N:183Y56-9 Part No.: 183Y56-9 $25.83 Add To Cart 046 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 047 MAKITA SPINDLE FOR DC-GA 4" P/N:326669-5 Part No.: 326669-5 $8.28 Add To Cart 048 MAKITA LEAD FLANGE B FOR DC/AC-GA P/N:310516-0 Part No.: 310516-0 $14.82 Add To Cart 052 MAKITA DUST COVER FOR GA050G P/N:422A12-3 Part No.: 422A12-3 $1.53 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PIN CAP FOR GA003G P/N:412234-7 Part No.: 412234-7
• 003: MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9
• 004: MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6
• 005: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 006: MAKITA GEAR HOUSING ASS'Y FOR GA048G P/N:136986-3 Part No.: 136986-3
• 007: MAKITA DUST COVER FOR GA050G P/N:422A12-3 Part No.: 422A12-3
• 008: MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8
• 009: MAKITA HANDLE SET FOR GA048G P/N:183Y56-9 Part No.: 183Y56-9
• 010: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 011: MAKITA SPIRAL BEVEL GEAR 10 FOR XGT-GA P/N:226976-5 Part No.: 226976-5
• 012: MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8
• 013: MAKITA O RING 32 P/N:213A32-6 Part No.: 213A32-6
• 015: MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4
• 017: MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6
• 018: MAKITA FRONT CUSHION FOR GA050G P/N:422A10-7 Part No.: 422A10-7
• 020: MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5
• 021: MAKITA GEAR HOUSING COVER ASS'Y FOR GA048G P/N:136989-7 Part No.: 136989-7
• 022: MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2
• 023: MAKITA ROTOR ASS'Y FOR GA048G P/N:519810-9 Part No.: 519810-9
• 024: MAKITA BEARING RETAINER 23-33 P/N:285039-6 Part No.: 285039-6
• 025: MAKITA BALL BEARING 6201LLU FOR 4140 P/N:211137-0 Part No.: 211137-0
• 026: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 027: MAKITA BAFFLE PLATE FOR GA048G P/N:413P41-7 Part No.: 413P41-7
• 028: MAKITA SPIRAL BEVEL GEAR 37 FOR GA050G P/N:227A65-5 Part No.: 227A65-5
• 029: MAKITA STATOR FOR GA048-51G P/N:629C11-0 Part No.: 629C11-0
• 030: MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9
• 031: MAKITA MOTOR HOUSING SET FOR GA048G P/N:1830B1-8 Part No.: 1830B1-8
• 032: MAKITA BEARING BOX COMPLETE FOR GA050G P/N:141N73-9 Part No.: 141N73-9
• 034: MAKITA CONTROLLER FOR GA048G P/N:620L32-9 Part No.: 620L32-9
• 035: MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9
• 036: MAKITA COMPRESSION SPRING 9 FOR GA009G P/N:233263-5 Part No.: 233263-5
• 037: MAKITA SWITCH LEVER COMPLETE FOR GA050G P/N:141N71-3 Part No.: 141N71-3
• 038: MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6
• 039: MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6
• 040: MAKITA PAN HEAD SCREW M4X20 P/N:911138-5 Part No.: 911138-5
• 041: MAKITA LEVER P/N:347803-4 Part No.: 347803-4
• 042: MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1
• 043: MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7
• 045: MAKITA HANDLE SET FOR GA048G P/N:183Y56-9 Part No.: 183Y56-9
