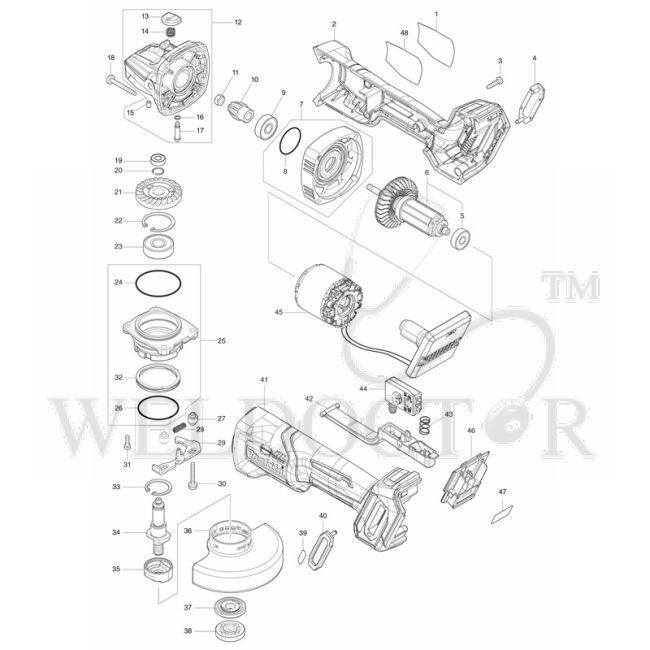

MAKITA GA011G 100MM CORDLESS ANGLE GRINDER SPARE PARTS

Spare Parts of Makita GA011G Cordless Angle Grinder Ref. No. Part Name & Number Price 002 MAKITA MOTOR HOUSING SET FOR GA011/36G P/N:183P29-8 Part No.: 183P29-8 $18.42 Add To Cart 004 MAKITA DUST COVER FOR XGT DC-GA P/N:422563-0 Part No.: 422563-0 $1.53 Add To Cart 005 MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2 $2.07 Add To Cart 006 MAKITA ROTOR ASS'Y FOR XGT DC-GA P/N:519595-7 Part No.: 519595-7 $35.64 Add To Cart 007 MAKITA GEAR HOUSING COVER ASS'Y FOR XGT-GA P/N:136190-4 Part No.: 136190-4 $5.89 Add To Cart 008 MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5 $0.33 Add To Cart 009 MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8 $2.62 Add To Cart 010 MAKITA SPIRAL BEVEL GEAR 10 FOR XGT-GA P/N:226976-5 Part No.: 226976-5 $5.12 Add To Cart 011 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 012 MAKITA GEAR HOUSING ASS'Y FOR XGT-GA P/N:136198-8 Part No.: 136198-8 $14.50 Add To Cart 013 MAKITA PIN CAP FOR GA003G P/N:412234-7 Part No.: 412234-7 $0.44 Add To Cart 015 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 016 MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9 $0.11 Add To Cart 017 MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6 $0.55 Add To Cart 018 MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4 $0.44 Add To Cart 020 MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6 $0.11 Add To Cart 021 MAKITA SPIRAL BEVEL GEAR 37 FOR DCT-GA P/N:226862-0 Part No.: 226862-0 $5.23 Add To Cart 022 MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6 $0.55 Add To Cart 024 MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9 $0.33 Add To Cart 025 MAKITA BEARING BOX ASS'Y FOR XGT-GA P/N:136262-5 Part No.: 136262-5 $10.68 Add To Cart 026 MAKITA O RING 36 FOR HR2010 BO4556 P/N:213510-0 Part No.: 213510-0 $0.33 Add To Cart 027 MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6 $0.76 Add To Cart 028 MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1 $0.22 Add To Cart 029 MAKITA LEVER B FOR DC-GA P/N:347641-4 Part No.: 347641-4 $2.83 Add To Cart 030 MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7 $0.22 Add To Cart 031 MAKITA PAN HEAD SCREW M4X20 P/N:911138-5 Part No.: 911138-5 $0.33 Add To Cart 032 MAKITA SCROW WAVE SPRING 41 XGT-GA P/N:232542-8 Part No.: 232542-8 $3.82 Add To Cart 033 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 034 MAKITA SPINDLE FOR DC-GA 4" P/N:326669-5 Part No.: 326669-5 $8.28 Add To Cart 035 MAKITA LEAD FLANGE B FOR DC/AC-GA P/N:310516-0 Part No.: 310516-0 $14.82 Add To Cart 040 MAKITA DUST COVER FOR XGT DC-GA P/N:422563-0 Part No.: 422563-0 $1.53 Add To Cart 041 MAKITA MOTOR HOUSING SET FOR GA011/36G P/N:183P29-8 Part No.: 183P29-8 $18.42 Add To Cart 042 MAKITA SWITCH LEVER COM FOR GA027G P/N:140T33-4 Part No.: 140T33-4 $4.25 Add To Cart 043 MAKITA COMPRESSION SPRING 9 FOR GA009G P/N:233263-5 Part No.: 233263-5 $0.55 Add To Cart 044 MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9 $18.42 Add To Cart 045 MAKITA STATOR FOR XGT DC-GA P/N:629480-7 Part No.: 629480-7 $214.95 Add To Cart 046 MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6 $8.50 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA MOTOR HOUSING SET FOR GA011/36G P/N:183P29-8 Part No.: 183P29-8
• 004: MAKITA DUST COVER FOR XGT DC-GA P/N:422563-0 Part No.: 422563-0
• 005: MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2
• 006: MAKITA ROTOR ASS'Y FOR XGT DC-GA P/N:519595-7 Part No.: 519595-7
• 007: MAKITA GEAR HOUSING COVER ASS'Y FOR XGT-GA P/N:136190-4 Part No.: 136190-4
• 008: MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5
• 009: MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8
• 010: MAKITA SPIRAL BEVEL GEAR 10 FOR XGT-GA P/N:226976-5 Part No.: 226976-5
• 011: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 012: MAKITA GEAR HOUSING ASS'Y FOR XGT-GA P/N:136198-8 Part No.: 136198-8
• 013: MAKITA PIN CAP FOR GA003G P/N:412234-7 Part No.: 412234-7
• 015: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 016: MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9
• 017: MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6
• 018: MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4
• 020: MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6
• 021: MAKITA SPIRAL BEVEL GEAR 37 FOR DCT-GA P/N:226862-0 Part No.: 226862-0
• 022: MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6
• 024: MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9
• 025: MAKITA BEARING BOX ASS'Y FOR XGT-GA P/N:136262-5 Part No.: 136262-5
• 026: MAKITA O RING 36 FOR HR2010 BO4556 P/N:213510-0 Part No.: 213510-0
• 027: MAKITA SLEEVE 4 FOR DC/AC-GA P/N:327322-6 Part No.: 327322-6
• 028: MAKITA COMPRESSION SPRING 4 P/N:232490-1 Part No.: 232490-1
• 029: MAKITA LEVER B FOR DC-GA P/N:347641-4 Part No.: 347641-4
• 030: MAKITA PAN HEAD SCREW M4X30 P/N:911159-7 Part No.: 911159-7
• 031: MAKITA PAN HEAD SCREW M4X20 P/N:911138-5 Part No.: 911138-5
• 032: MAKITA SCROW WAVE SPRING 41 XGT-GA P/N:232542-8 Part No.: 232542-8
• 033: MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3
• 034: MAKITA SPINDLE FOR DC-GA 4" P/N:326669-5 Part No.: 326669-5
• 035: MAKITA LEAD FLANGE B FOR DC/AC-GA P/N:310516-0 Part No.: 310516-0
• 040: MAKITA DUST COVER FOR XGT DC-GA P/N:422563-0 Part No.: 422563-0
• 041: MAKITA MOTOR HOUSING SET FOR GA011/36G P/N:183P29-8 Part No.: 183P29-8
• 042: MAKITA SWITCH LEVER COM FOR GA027G P/N:140T33-4 Part No.: 140T33-4
• 043: MAKITA COMPRESSION SPRING 9 FOR GA009G P/N:233263-5 Part No.: 233263-5
• 044: MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9
• 045: MAKITA STATOR FOR XGT DC-GA P/N:629480-7 Part No.: 629480-7
• 046: MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6
