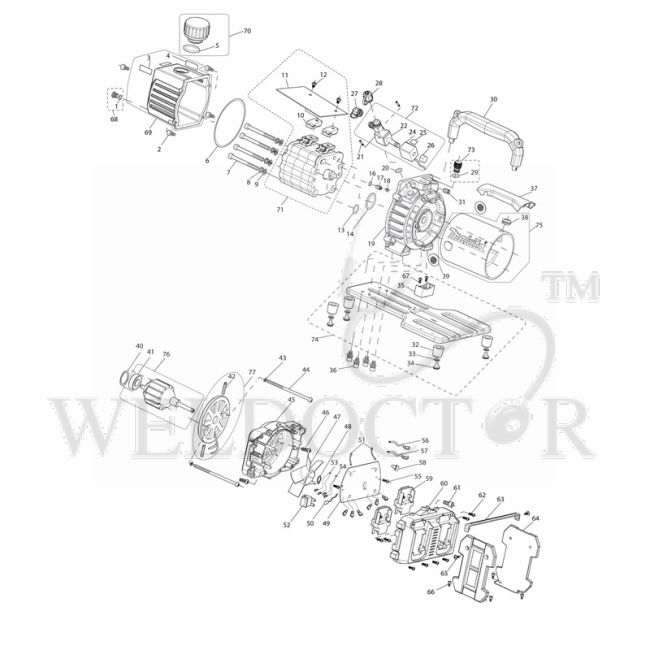

MAKITA DVP181 CORDLESS VACUUM PUMP SPARE PARTS

Spare Parts of Makita DVP181 Vacuum Pump Ref. No. Part Name & Number Price 001 MAKITA O-RING 10X2.5 FOR DVP180 P/N:AS000VP010 Part No.: AS000VP010 $2.73 Add To Cart 002 MAKITA HEXAGON BOLT M5X16 FOR DVP180 P/N:AS000VP011 Part No.: AS000VP011 $2.73 Add To Cart 005 MAKITA O-RING 26X2.2 FOR DVP180 P/N:AS000VP013 Part No.: AS000VP013 $2.73 Add To Cart 006 MAKITA O-RING 120X3.1 FOR DVP181 P/N:AS000VP092 Part No.: AS000VP092 $2.40 Add To Cart 007 MAKITA HEX SOCKET HEAD BOLT M8X90 FOR DVP181 P/N:AS000VP093 Part No.: AS000VP093 $2.40 Add To Cart 008 MAKITA SPRING WASHER 8 FOR DVP181 P/N:AS000VP094 Part No.: AS000VP094 $2.40 Add To Cart 009 MAKITA FLAT WASHER 8 FOR DVP181 P/N:AS000VP095 Part No.: AS000VP095 $2.40 Add To Cart 013 MAKITA O-RING 12X1.6 FOR DVP181 P/N:AS000VP100 Part No.: AS000VP100 $2.40 Add To Cart 014 MAKITA O-RING 34.5X2 FOR DVP181 P/N:AS000VP101 Part No.: AS000VP101 $2.40 Add To Cart 016 MAKITA O-RING 13X2 FOR DVP181 P/N:AS000VP103 Part No.: AS000VP103 $2.40 Add To Cart 017 MAKITA SPRING 7X0.5X6 FOR DVP181 P/N:AS000VP104 Part No.: AS000VP104 $2.40 Add To Cart 018 MAKITA GAS BALLAST VALVE ELEMENT FOR DVP181 P/N:AS000VP105 Part No.: AS000VP105 $2.40 Add To Cart 019 MAKITA TRESTLE MA245 FOR DVP181 P/N:AS00VP106M Part No.: AS00VP106M $72.05 Add To Cart 020 MAKITA O-RING 15X2 FOR DVP181 P/N:AS000VP107 Part No.: AS000VP107 $2.40 Add To Cart 021 MAKITA PAN HEAD SCREW M3X25 FOR DVP181 P/N:AS000VP173 Part No.: AS000VP173 $2.40 Add To Cart 027 MAKITA INLET PORT CAP (5/16'') FOR DVP180 P/N:AS000VP017 Part No.: AS000VP017 $2.73 Add To Cart 028 MAKITA INLET PORT CAP 4# (3/8SAE) FOR DVP181 P/N:AS000VP113 Part No.: AS000VP113 $2.40 Add To Cart 030 MAKITA HANDLE MA245 FOR DVP181 P/N:AS000VP117 Part No.: AS000VP117 $34.88 Add To Cart 031 MAKITA HEX SOCKET HEAD BOLT M8X8 FOR DVP181 P/N:AS000VP118 Part No.: AS000VP118 $2.40 Add To Cart 034 MAKITA PAN HEAD SCREW M4X8 FOR DVP181 P/N:AS000VP123 Part No.: AS000VP123 $2.40 Add To Cart 036 MAKITA HEXAGON BOLT (W/WASHER) M5X16 FOR DVP180 P/N:AS000VP026 Part No.: AS000VP026 $2.73 Add To Cart 037 MAKITA WIRING COVER FOR DVP181 P/N:AS000VP125 Part No.: AS000VP125 $4.69 Add To Cart 039 MAKITA INLET PORT CAP FOR DVP180 P/N:AS000VP020 Part No.: AS000VP020 $5.34 Add To Cart 040 MAKITA BEARING WASHER FOR DVP181 P/N:AS000VP128 Part No.: AS000VP128 $2.40 Add To Cart 043 MAKITA SPRING WASHER M5 FOR DVP180 P/N:AS000VP027 Part No.: AS000VP027 $2.73 Add To Cart 044 MAKITA PAN HEAD SCREW M5X130 FOR DVP181 P/N:AS000VP133 Part No.: AS000VP133 $2.40 Add To Cart 045 MAKITA BATTERY HOLDER F FOR DVP181 P/N:AS000VP134 Part No.: AS000VP134 $14.50 Add To Cart 047 MAKITA FAN FOR DVP181 P/N:AS000VP135 Part No.: AS000VP135 $3.38 Add To Cart 048 MAKITA CIRCLIP FOR DVP181 P/N:AS000VP136 Part No.: AS000VP136 $2.40 Add To Cart 049 MAKITA CIRCUIT BOARD B8-18V FOR DVP181 P/N:AS000VP137 Part No.: AS000VP137 $348.26 Add To Cart 050 MAKITA BUZZER FOR DVP181 P/N:AS000VP138 Part No.: AS000VP138 $7.63 Add To Cart 051 MAKITA LED LAMP FOR DVP181 P/N:AS000VP139 Part No.: AS000VP139 $4.69 Add To Cart 052 MAKITA SWITCH FOR DVP181 P/N:AS000VP140 Part No.: AS000VP140 $16.35 Add To Cart 053 MAKITA WIRING ASSY L SWITCH FOR DVP181 P/N:AS000VP141 Part No.: AS000VP141 $2.40 Add To Cart 054 MAKITA WIRING ASSY S SWITCH FOR DVP181 P/N:AS000VP142 Part No.: AS000VP142 $2.40 Add To Cart 055 MAKITA TAPPING SCREW M3X10 FOR DVP180 P/N:AS000VP035 Part No.: AS000VP035 $2.73 Add To Cart 056 MAKITA RED CONNECTING LINE FOR DVP181 P/N:AS000VP143 Part No.: AS000VP143 $4.25 Add To Cart 057 MAKITA BLACK CONNECTING LINE FOR DVP181 P/N:AS000VP144 Part No.: AS000VP144 $4.25 Add To Cart 058 MAKITA CLOSED END SPLICE FOR DVP181 P/N:AS000VP145 Part No.: AS000VP145 $2.40 Add To Cart 059 MAKITA TERMINAL FOR BCV01 P/N:643899-6 Part No.: 643899-6 $3.71 Add To Cart 060 MAKITA BATTERY HOLDER FOR DVP181 P/N:AS000VP146 Part No.: AS000VP146 $20.93 Add To Cart 061 MAKITA HEX SOCKET HEAD BOLT M5X10 FOR DVP181 P/N:AS000VP147 Part No.: AS000VP147 $2.40 Add To Cart 062 MAKITA TAPPING SCREW M3X10 FOR DVP180 P/N:AS000VP035 Part No.: AS000VP035 $2.73 Add To Cart 063 MAKITA BATT GUARD CONNECTING ROD FOR DVP181 P/N:AS000VP148 Part No.: AS000VP148 $9.37 Add To Cart 064 MAKITA BATTERY GUARD FOR DVP181 P/N:AS000VP149 Part No.: AS000VP149 $26.49 Add To Cart 065 MAKITA PAN HEAD SCREW M4X8 FOR DVP181 P/N:AS000VP123 Part No.: AS000VP123 $2.40 Add To Cart 066 MAKITA HEX SOCKET HEAD BOLT M4X10 FOR DVP181 P/N:AS000VP174 Part No.: AS000VP174 $2.40 Add To Cart 067 MAKITA PAN HEAD SCREW M4X8 FOR DVP181 P/N:AS000VP123 Part No.: AS000VP123 $2.40 Add To Cart 068 MAKITA OIL DRAIN PLUG ASSY FOR DVP181 P/N:AS00VP086M Part No.: AS00VP086M $8.18 Add To Cart 069 MAKITA OIL TANK MA245 ASSY FOR DVP181 P/N:AS00VP091M Part No.: AS00VP091M $69.65 Add To Cart 070 MAKITA 1XHAUST PORT ASSY FOR DVP181 P/N:AS000VP087 Part No.: AS000VP087 $13.95 Add To Cart 071 MAKITA PUMP HEAD ASSY FOR DVP181 P/N:AS000VP096 Part No.: AS000VP096 $296.59 Add To Cart 072 MAKITA SOLENOID VALVE ASSY FOR DVP181 P/N:AS000VP108 Part No.: AS000VP108 $162.52 Add To Cart 073 MAKITA GAS BALLAST ASSY FOR DVP181 P/N:AS000VP114 Part No.: AS000VP114 $16.35 Add To Cart 074 MAKITA BASE ASSY FOR DVP181 P/N:AS000VP119 Part No.: AS000VP119 $44.15 Add To Cart 075 MAKITA MOTOR HOUSING ASSY FOR DVP181 P/N:AS00VP127M Part No.: AS00VP127M $139.30 Add To Cart 076 MAKITA ARMATURE ASSY FOR DVP181 P/N:AS000VP129 Part No.: AS000VP129 $262.36 Add To Cart 077 MAKITA MOTOR REAR COVER ASSY FOR DVP181 P/N:AS000VP131 Part No.: AS000VP131 $65.07 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA O-RING 10X2.5 FOR DVP180 P/N:AS000VP010 Part No.: AS000VP010
• 002: MAKITA HEXAGON BOLT M5X16 FOR DVP180 P/N:AS000VP011 Part No.: AS000VP011
• 005: MAKITA O-RING 26X2.2 FOR DVP180 P/N:AS000VP013 Part No.: AS000VP013
• 006: MAKITA O-RING 120X3.1 FOR DVP181 P/N:AS000VP092 Part No.: AS000VP092
• 007: MAKITA HEX SOCKET HEAD BOLT M8X90 FOR DVP181 P/N:AS000VP093 Part No.: AS000VP093
• 008: MAKITA SPRING WASHER 8 FOR DVP181 P/N:AS000VP094 Part No.: AS000VP094
• 009: MAKITA FLAT WASHER 8 FOR DVP181 P/N:AS000VP095 Part No.: AS000VP095
• 013: MAKITA O-RING 12X1.6 FOR DVP181 P/N:AS000VP100 Part No.: AS000VP100
• 014: MAKITA O-RING 34.5X2 FOR DVP181 P/N:AS000VP101 Part No.: AS000VP101
• 016: MAKITA O-RING 13X2 FOR DVP181 P/N:AS000VP103 Part No.: AS000VP103
• 017: MAKITA SPRING 7X0.5X6 FOR DVP181 P/N:AS000VP104 Part No.: AS000VP104
• 018: MAKITA GAS BALLAST VALVE ELEMENT FOR DVP181 P/N:AS000VP105 Part No.: AS000VP105
• 019: MAKITA TRESTLE MA245 FOR DVP181 P/N:AS00VP106M Part No.: AS00VP106M
• 020: MAKITA O-RING 15X2 FOR DVP181 P/N:AS000VP107 Part No.: AS000VP107
• 021: MAKITA PAN HEAD SCREW M3X25 FOR DVP181 P/N:AS000VP173 Part No.: AS000VP173
• 027: MAKITA INLET PORT CAP (5/16'') FOR DVP180 P/N:AS000VP017 Part No.: AS000VP017
• 028: MAKITA INLET PORT CAP 4# (3/8SAE) FOR DVP181 P/N:AS000VP113 Part No.: AS000VP113
• 030: MAKITA HANDLE MA245 FOR DVP181 P/N:AS000VP117 Part No.: AS000VP117
• 031: MAKITA HEX SOCKET HEAD BOLT M8X8 FOR DVP181 P/N:AS000VP118 Part No.: AS000VP118
• 034: MAKITA PAN HEAD SCREW M4X8 FOR DVP181 P/N:AS000VP123 Part No.: AS000VP123
• 036: MAKITA HEXAGON BOLT (W/WASHER) M5X16 FOR DVP180 P/N:AS000VP026 Part No.: AS000VP026
• 037: MAKITA WIRING COVER FOR DVP181 P/N:AS000VP125 Part No.: AS000VP125
• 039: MAKITA INLET PORT CAP FOR DVP180 P/N:AS000VP020 Part No.: AS000VP020
• 040: MAKITA BEARING WASHER FOR DVP181 P/N:AS000VP128 Part No.: AS000VP128
• 043: MAKITA SPRING WASHER M5 FOR DVP180 P/N:AS000VP027 Part No.: AS000VP027
• 044: MAKITA PAN HEAD SCREW M5X130 FOR DVP181 P/N:AS000VP133 Part No.: AS000VP133
• 045: MAKITA BATTERY HOLDER F FOR DVP181 P/N:AS000VP134 Part No.: AS000VP134
• 047: MAKITA FAN FOR DVP181 P/N:AS000VP135 Part No.: AS000VP135
• 048: MAKITA CIRCLIP FOR DVP181 P/N:AS000VP136 Part No.: AS000VP136
• 049: MAKITA CIRCUIT BOARD B8-18V FOR DVP181 P/N:AS000VP137 Part No.: AS000VP137
• 050: MAKITA BUZZER FOR DVP181 P/N:AS000VP138 Part No.: AS000VP138
• 051: MAKITA LED LAMP FOR DVP181 P/N:AS000VP139 Part No.: AS000VP139
• 052: MAKITA SWITCH FOR DVP181 P/N:AS000VP140 Part No.: AS000VP140
• 053: MAKITA WIRING ASSY L SWITCH FOR DVP181 P/N:AS000VP141 Part No.: AS000VP141
• 054: MAKITA WIRING ASSY S SWITCH FOR DVP181 P/N:AS000VP142 Part No.: AS000VP142
• 055: MAKITA TAPPING SCREW M3X10 FOR DVP180 P/N:AS000VP035 Part No.: AS000VP035
• 056: MAKITA RED CONNECTING LINE FOR DVP181 P/N:AS000VP143 Part No.: AS000VP143
• 057: MAKITA BLACK CONNECTING LINE FOR DVP181 P/N:AS000VP144 Part No.: AS000VP144
• 058: MAKITA CLOSED END SPLICE FOR DVP181 P/N:AS000VP145 Part No.: AS000VP145
