MAKITA DVC865L CORDLESS VACUUM CLEANER SPARE PARTS

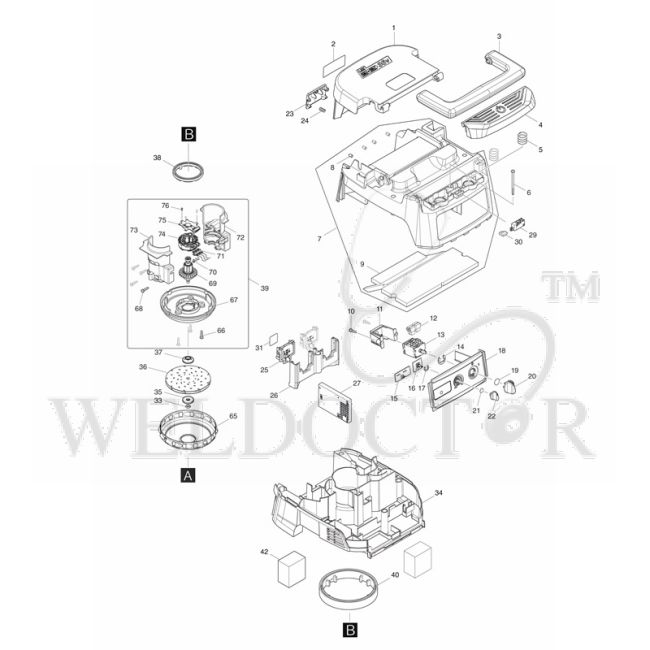

Spare Parts of Makita DVC865 Vacuum Cleaner Ref. No. Part Name & Number Price 001 MAKITA BATTERY COVER COMPLETE FOR VC860D P/N:143174-5 Part No.: 143174-5 $8.61 Add To Cart 003 MAKITA GRIP FOR VC860D P/N:455734-4 Part No.: 455734-4 $7.52 Add To Cart 006 MAKITA TAPPING SCREW 4X65 FOR MT370 P/N:266340-8 Part No.: 266340-8 $0.33 Add To Cart 007 MAKITA COWLING COMPLETE P/N:144409-7 Part No.: 144409-7 $24.42 Add To Cart 008 MAKITA RUBBER PIN 6 P/N:263005-3 Part No.: 263005-3 $0.22 Add To Cart 013 MAKITA SWITCH FOR DCU601-605/DVC-L P/N:650622-2 Part No.: 650622-2 $8.18 Add To Cart 014 MAKITA STOP RING E-12 FOR DVC860L P/N:961062-2 Part No.: 961062-2 $0.33 Add To Cart 016 MAKITA SUB CONTROLLER FOR 483 P/N:631922-9 Part No.: 631922-9 $8.18 Add To Cart 017 MAKITA STOP RING E-7 FOR JN3200 P/N:961013-5 Part No.: 961013-5 $0.22 Add To Cart 019 MAKITA O RING 14 FOR 484P P/N:213176-6 Part No.: 213176-6 $0.33 Add To Cart 020 MAKITA SWITCH LEVER FOR DVC867L/VC003GL P/N:455733-6 Part No.: 455733-6 $1.64 Add To Cart 022 MAKITA SWITCH DIAL FOR DVC/VC006G/VC3210L P/N:451344-5 Part No.: 451344-5 $0.55 Add To Cart 023 MAKITA BATTERY COVER HOOK FOR VC860D P/N:455728-9 Part No.: 455728-9 $1.53 Add To Cart 024 MAKITA COMPRESSION SPRING 7 FOR DSP600 P/N:231240-1 Part No.: 231240-1 $0.11 Add To Cart 025 MAKITA TERMINAL FOR HR244D P/N:644808-8 Part No.: 644808-8 $3.71 Add To Cart 026 MAKITA TERMINAL BASE FOR VC860D P/N:455729-7 Part No.: 455729-7 $3.71 Add To Cart 027 MAKITA CONTROLLER FOR DVC862 P/N:620639-9 Part No.: 620639-9 $162.74 Add To Cart 029 MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0 $6.98 Add To Cart 034 MAKITA SEPARATOR P/N:412581-6 Part No.: 412581-6 $15.91 Add To Cart 035 MAKITA FLAT WASHER 8 FOR 2414B/2414NB P/N:253752-4 Part No.: 253752-4 $0.44 Add To Cart 036 MAKITA FAN 104 P/N:240178-9 Part No.: 240178-9 $4.58 Add To Cart 037 MAKITA FLANGE FOR DVC260 P/N:313062-2 Part No.: 313062-2 $1.74 Add To Cart 038 MAKITA RUBBER RING 60 FOR VC860D P/N:424685-2 Part No.: 424685-2 $1.42 Add To Cart 039 MAKITA DC MOTOR ASSEMBLY FOR DVC865L/155L P/N:127602-8 Part No.: 127602-8 $64.31 Add To Cart 040 MAKITA RUBBER RING 120 FOR VC860D P/N:424686-0 Part No.: 424686-0 $4.91 Add To Cart 041 MAKITA SUPPORT RING P/N:422590-7 Part No.: 422590-7 $4.58 Add To Cart 042 MAKITA REAR BLOCK FILTER FOR DVC P/N:424690-9 Part No.: 424690-9 $0.76 Add To Cart 043 MAKITA TANK COVER COMPLETE FOR VC860D P/N:143175-3 Part No.: 143175-3 $36.52 Add To Cart 044 MAKITA BAND DAMPER P/N:424691-7 Part No.: 424691-7 $3.49 Add To Cart 045 MAKITA FRONT DAMPER P/N:424689-4 Part No.: 424689-4 $0.87 Add To Cart 046 MAKITA FLOAT COMPLETE FOR M441 P/N:158166-1 Part No.: 158166-1 $4.36 Add To Cart 048 MAKITA FLOAT CAGE FOR 481 P/N:419725-9 Part No.: 419725-9 $3.05 Add To Cart 049 MAKITA TAPPING SCREW 4X25 FOR GA7020 Part No.: 266374-1 $0.11 Add To Cart 051 MAKITA BUMPER P/N:422148-2 Part No.: 422148-2 $9.92 Add To Cart 053 MAKITA TAPPING SCREW 4X28 FOR DVC860L P/N:266257-5 Part No.: 266257-5 $0.44 Add To Cart 057 MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7 $0.33 Add To Cart 058 MAKITA O RING 56 FOR HR3520/ HM1201 Part No.: 213655-4 $0.44 Add To Cart 060 MAKITA HOOK P/N:168537-4 Part No.: 168537-4 $9.48 Add To Cart 061 MAKITA CASTER 50 (LOCK) FOR DVC P/N:168535-8 Part No.: 168535-8 $6.98 Add To Cart 062 MAKITA CASTER 50 FOR DVC P/N:168434-4 Part No.: 168434-4 $5.78 Add To Cart 064 MAKITA TANK FOR 483 P/N:451334-8 Part No.: 451334-8 $25.51 Add To Cart 065 MAKITA FAN COVER P/N:347171-5 Part No.: 347171-5 $5.01 Add To Cart 069 MAKITA ROTOR ASS'Y FOR DVC157L/867L P/N:619431-8 Part No.: 619431-8 $19.51 Add To Cart 070 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 072 MAKITA MOTOR HOUSING SET FOR DVC157/865L P/N:183F90-5 Part No.: 183F90-5 $7.30 Add To Cart 073 MAKITA MOTOR HOUSING SET FOR DVC157/865L P/N:183F90-5 Part No.: 183F90-5 $7.30 Add To Cart 074 MAKITA STATOR FOR DBO38/ DVC15/DVC86 P/N:629491-2 Part No.: 629491-2 $9.16 Add To Cart 075 MAKITA CONTROLLER B FOR DVC155/865L P/N:620648-8 Part No.: 620648-8 $20.17 Add To Cart 076 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA BATTERY COVER COMPLETE FOR VC860D P/N:143174-5 Part No.: 143174-5
• 003: MAKITA GRIP FOR VC860D P/N:455734-4 Part No.: 455734-4
• 006: MAKITA TAPPING SCREW 4X65 FOR MT370 P/N:266340-8 Part No.: 266340-8
• 007: MAKITA COWLING COMPLETE P/N:144409-7 Part No.: 144409-7
• 008: MAKITA RUBBER PIN 6 P/N:263005-3 Part No.: 263005-3
• 013: MAKITA SWITCH FOR DCU601-605/DVC-L P/N:650622-2 Part No.: 650622-2
• 014: MAKITA STOP RING E-12 FOR DVC860L P/N:961062-2 Part No.: 961062-2
• 016: MAKITA SUB CONTROLLER FOR 483 P/N:631922-9 Part No.: 631922-9
• 017: MAKITA STOP RING E-7 FOR JN3200 P/N:961013-5 Part No.: 961013-5
• 019: MAKITA O RING 14 FOR 484P P/N:213176-6 Part No.: 213176-6
• 020: MAKITA SWITCH LEVER FOR DVC867L/VC003GL P/N:455733-6 Part No.: 455733-6
• 022: MAKITA SWITCH DIAL FOR DVC/VC006G/VC3210L P/N:451344-5 Part No.: 451344-5
• 023: MAKITA BATTERY COVER HOOK FOR VC860D P/N:455728-9 Part No.: 455728-9
• 024: MAKITA COMPRESSION SPRING 7 FOR DSP600 P/N:231240-1 Part No.: 231240-1
• 025: MAKITA TERMINAL FOR HR244D P/N:644808-8 Part No.: 644808-8
• 026: MAKITA TERMINAL BASE FOR VC860D P/N:455729-7 Part No.: 455729-7
• 027: MAKITA CONTROLLER FOR DVC862 P/N:620639-9 Part No.: 620639-9
• 029: MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0
• 034: MAKITA SEPARATOR P/N:412581-6 Part No.: 412581-6
• 035: MAKITA FLAT WASHER 8 FOR 2414B/2414NB P/N:253752-4 Part No.: 253752-4
• 036: MAKITA FAN 104 P/N:240178-9 Part No.: 240178-9
• 037: MAKITA FLANGE FOR DVC260 P/N:313062-2 Part No.: 313062-2
• 038: MAKITA RUBBER RING 60 FOR VC860D P/N:424685-2 Part No.: 424685-2
• 039: MAKITA DC MOTOR ASSEMBLY FOR DVC865L/155L P/N:127602-8 Part No.: 127602-8
• 040: MAKITA RUBBER RING 120 FOR VC860D P/N:424686-0 Part No.: 424686-0
• 041: MAKITA SUPPORT RING P/N:422590-7 Part No.: 422590-7
• 042: MAKITA REAR BLOCK FILTER FOR DVC P/N:424690-9 Part No.: 424690-9
• 043: MAKITA TANK COVER COMPLETE FOR VC860D P/N:143175-3 Part No.: 143175-3
• 044: MAKITA BAND DAMPER P/N:424691-7 Part No.: 424691-7
• 045: MAKITA FRONT DAMPER P/N:424689-4 Part No.: 424689-4
• 046: MAKITA FLOAT COMPLETE FOR M441 P/N:158166-1 Part No.: 158166-1
• 048: MAKITA FLOAT CAGE FOR 481 P/N:419725-9 Part No.: 419725-9
• 049: MAKITA TAPPING SCREW 4X25 FOR GA7020 Part No.: 266374-1
• 051: MAKITA BUMPER P/N:422148-2 Part No.: 422148-2
• 053: MAKITA TAPPING SCREW 4X28 FOR DVC860L P/N:266257-5 Part No.: 266257-5
• 057: MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7
• 058: MAKITA O RING 56 FOR HR3520/ HM1201 Part No.: 213655-4
• 060: MAKITA HOOK P/N:168537-4 Part No.: 168537-4
• 061: MAKITA CASTER 50 (LOCK) FOR DVC P/N:168535-8 Part No.: 168535-8
