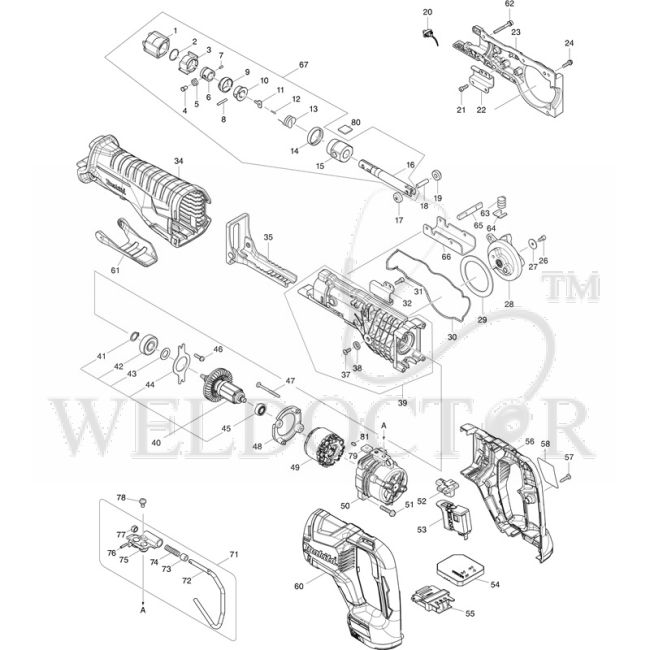

MAKITA DJR187 SPARE PARTS

Spare Parts of Makita Recipro Saw DJR187 Ref. No. Part Name & Number Price 001 MAKITA PROTECTOR FOR DJR187 P/N:424763-8 Part No.: 424763-8 $0.65 Add To Cart 003 MAKITA DRIVING SLEEVE FOR DJR186 P/N:310662-9 Part No.: 310662-9 $3.60 Add To Cart 004 MAKITA SHOULDER PIN 5 FOR JR3070CT P/N:256569-4 Part No.: 256569-4 $0.87 Add To Cart 005 MAKITA SPRING 6 FOR DC/AC-JR P/N:234381-2 Part No.: 234381-2 $0.22 Add To Cart 007 MAKITA PIN 3 FOR DC/AC-JR P/N:268094-3 Part No.: 268094-3 $0.33 Add To Cart 008 MAKITA PIN 3 FOR LS1045 Part No.: 256158-5 $0.33 Add To Cart 009 MAKITA DRIVING SLEEVE GUIDE FOR JR3050T P/N:417791-0 Part No.: 417791-0 $0.98 Add To Cart 010 MAKITA SLEEVE FOR JR3050T Part No.: 418311-3 $0.55 Add To Cart 011 MAKITA PUSH PLATE FOR JR3050T Part No.: 345214-7 $0.22 Add To Cart 012 MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1 $0.33 Add To Cart 013 MAKITA TORSION SPRING 17 FOR JR3070CT Part No.: 231687-9 $0.33 Add To Cart 015 MAKITA SLIDER GUIDE COMPLETE FOR DJR187 P/N:143365-8 Part No.: 143365-8 $10.68 Add To Cart 017 MAKITA ROLLER FOR JR187D P/N:310663-7 Part No.: 310663-7 $0.44 Add To Cart 018 MAKITA PIN 6 FOR JR3061T P/N:268341-2 Part No.: 268341-2 $0.22 Add To Cart 019 MAKITA ROLLER FOR JR187D P/N:310663-7 Part No.: 310663-7 $0.44 Add To Cart 021 MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8 $0.33 Add To Cart 022 MAKITA ROD GUIDE R FOR JR187D P/N:346936-2 Part No.: 346936-2 $0.98 Add To Cart 023 MAKITA GEAR HOUSING R FOR DJR187/360 P/N:143362-4 Part No.: 143362-4 $14.06 Add To Cart 024 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 026 MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1 $0.11 Add To Cart 027 MAKITA FLAT WASHER 4 FOR DJR186 P/N:267491-0 Part No.: 267491-0 $0.22 Add To Cart 030 MAKITA SEAL RING FOR JR187D P/N:424764-6 Part No.: 424764-6 $0.76 Add To Cart 031 MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8 $0.33 Add To Cart 032 MAKITA ROD GUIDE L FOR JR187D P/N:346935-4 Part No.: 346935-4 $0.98 Add To Cart 034 MAKITA INSULATION COVER FOR JR187D P/N:424765-4 Part No.: 424765-4 $17.77 Add To Cart 037 MAKITA COUNTERSUNK HEAD SCREW M4X10 FOR 3700B P/N:912112-6 Part No.: 912112-6 $0.11 Add To Cart 038 MAKITA FLAT WASHER 6 FOR BO4510/BO4540 P/N:253825-3 Part No.: 253825-3 $0.44 Add To Cart 041 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 042 MAKITA BALL BEARING 6201DDW P/N:210118-1 Part No.: 210118-1 $2.07 Add To Cart 043 MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3 $0.33 Add To Cart 045 MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2 $0.98 Add To Cart 046 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 047 MAKITA TAPPING SCREW FLANGE PT4X45 FOR HR2410 P/N:266069-6 Part No.: 266069-6 $0.44 Add To Cart 048 MAKITA BAFFLE PLATE FOR DJR187 P/N:456178-1 Part No.: 456178-1 $0.65 Add To Cart 051 MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8 $0.33 Add To Cart 052 MAKITA CHANGE BUTTON FOR DC-JR P/N:456177-3 Part No.: 456177-3 $2.18 Add To Cart 053 MAKITA SWITCH FOR DJR187/360 P/N:650759-5 Part No.: 650759-5 $20.27 Add To Cart 055 MAKITA TERMINAL FOR BCV01 P/N:643899-6 Part No.: 643899-6 $3.71 Add To Cart 061 MAKITA LOCK LEVER FOR JR187D P/N:456176-5 Part No.: 456176-5 $1.53 Add To Cart 063 MAKITA COMPRESSION SPRING 12 FOR 3612C P/N:231231-2 Part No.: 231231-2 $0.33 Add To Cart 064 MAKITA SHOE LOCK PLATE FOR JR187D P/N:346938-8 Part No.: 346938-8 $0.44 Add To Cart 065 MAKITA LOCK PIN FOR DC/AC-JR P/N:326599-0 Part No.: 326599-0 $1.31 Add To Cart 066 MAKITA SHOE GUIDE PLATE FOR JR187D P/N:346937-0 Part No.: 346937-0 $1.85 Add To Cart 076 MAKITA SPRING PIN 3-12 FOR 906 P/N:951057-3 Part No.: 951057-3 $0.33 Add To Cart 078 MAKITA PAN HEAD SCREW M5X10 FOR 3612C P/N:911206-4 Part No.: 911206-4 $0.33 Add To Cart 079 MAKITA SQUARE NUT M5 FOR DJR181 P/N:264002-2 Part No.: 264002-2 $0.33 Add To Cart 080 MAKITA FELT 16X16 FOR DJR187 P/N:424858-7 Part No.: 424858-7 $0.22 Add To Cart 081 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PROTECTOR FOR DJR187 P/N:424763-8 Part No.: 424763-8
• 003: MAKITA DRIVING SLEEVE FOR DJR186 P/N:310662-9 Part No.: 310662-9
• 004: MAKITA SHOULDER PIN 5 FOR JR3070CT P/N:256569-4 Part No.: 256569-4
• 005: MAKITA SPRING 6 FOR DC/AC-JR P/N:234381-2 Part No.: 234381-2
• 007: MAKITA PIN 3 FOR DC/AC-JR P/N:268094-3 Part No.: 268094-3
• 008: MAKITA PIN 3 FOR LS1045 Part No.: 256158-5
• 009: MAKITA DRIVING SLEEVE GUIDE FOR JR3050T P/N:417791-0 Part No.: 417791-0
• 010: MAKITA SLEEVE FOR JR3050T Part No.: 418311-3
• 011: MAKITA PUSH PLATE FOR JR3050T Part No.: 345214-7
• 012: MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1
• 013: MAKITA TORSION SPRING 17 FOR JR3070CT Part No.: 231687-9
• 015: MAKITA SLIDER GUIDE COMPLETE FOR DJR187 P/N:143365-8 Part No.: 143365-8
• 017: MAKITA ROLLER FOR JR187D P/N:310663-7 Part No.: 310663-7
• 018: MAKITA PIN 6 FOR JR3061T P/N:268341-2 Part No.: 268341-2
• 019: MAKITA ROLLER FOR JR187D P/N:310663-7 Part No.: 310663-7
• 021: MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8
• 022: MAKITA ROD GUIDE R FOR JR187D P/N:346936-2 Part No.: 346936-2
• 023: MAKITA GEAR HOUSING R FOR DJR187/360 P/N:143362-4 Part No.: 143362-4
• 024: MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8
• 026: MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1
• 027: MAKITA FLAT WASHER 4 FOR DJR186 P/N:267491-0 Part No.: 267491-0
• 030: MAKITA SEAL RING FOR JR187D P/N:424764-6 Part No.: 424764-6
• 031: MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8
• 032: MAKITA ROD GUIDE L FOR JR187D P/N:346935-4 Part No.: 346935-4
• 034: MAKITA INSULATION COVER FOR JR187D P/N:424765-4 Part No.: 424765-4
• 037: MAKITA COUNTERSUNK HEAD SCREW M4X10 FOR 3700B P/N:912112-6 Part No.: 912112-6
• 038: MAKITA FLAT WASHER 6 FOR BO4510/BO4540 P/N:253825-3 Part No.: 253825-3
• 041: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 042: MAKITA BALL BEARING 6201DDW P/N:210118-1 Part No.: 210118-1
• 043: MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3
• 045: MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2
• 046: MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8
• 047: MAKITA TAPPING SCREW FLANGE PT4X45 FOR HR2410 P/N:266069-6 Part No.: 266069-6
• 048: MAKITA BAFFLE PLATE FOR DJR187 P/N:456178-1 Part No.: 456178-1
• 051: MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8
• 052: MAKITA CHANGE BUTTON FOR DC-JR P/N:456177-3 Part No.: 456177-3
• 053: MAKITA SWITCH FOR DJR187/360 P/N:650759-5 Part No.: 650759-5
• 055: MAKITA TERMINAL FOR BCV01 P/N:643899-6 Part No.: 643899-6
• 061: MAKITA LOCK LEVER FOR JR187D P/N:456176-5 Part No.: 456176-5
