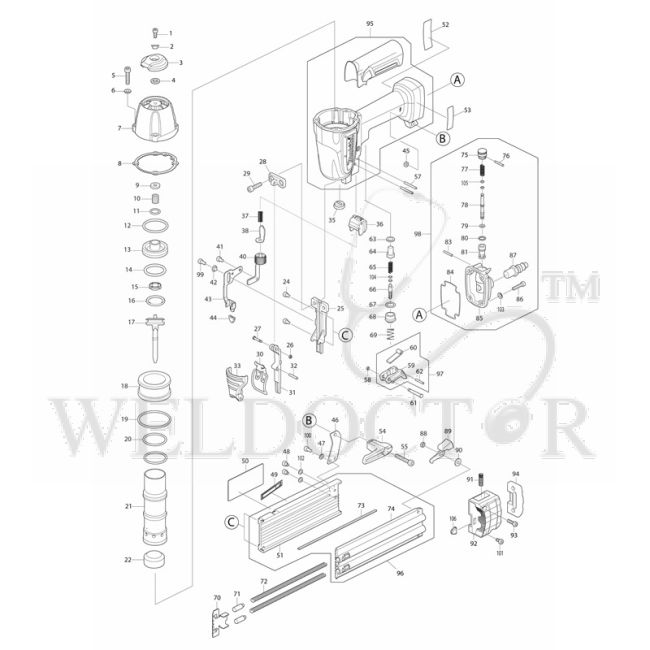

MAKITA AF506 PNEUMATIC BRAD NAILER SPARE PARTS

Spare Parts of Makita AF506 Pneumatic Brad Nailer Ref. No. Part Name & Number Price 001 MAKITA HEX. SOCKET HEAD BOLT M4*10 P/N:HY00000001 Part No.: HY00000001 $0.33 Add To Cart 002 MAKITA SLEEVE 4 P/N:HY00000002 Part No.: HY00000002 $0.55 Add To Cart 004 MAKITA RUBBER WASHER 7 FOR AF505 P/N:HY00000004 Part No.: HY00000004 $0.55 Add To Cart 005 MAKITA HEX SCOKET HEAD BOLT M5*22 P/N:HY00000049 Part No.: HY00000049 $0.65 Add To Cart 009 MAKITA CUSHION V FOR AF505 P/N:HY00000008 Part No.: HY00000008 $0.65 Add To Cart 011 MAKITA O-RING 12 P/N:HY00000010 Part No.: HY00000010 $0.44 Add To Cart 012 MAKITA O-RING 33 P/N:HY00000011 Part No.: HY00000011 $0.65 Add To Cart 014 MAKITA O RING 26.5 P/N:HY00000408 Part No.: HY00000408 $0.65 Add To Cart 015 MAKITA CUSHION P P/N:HY00000014 Part No.: HY00000014 $0.76 Add To Cart 016 MAKITA O RING 22.5 P/N:HY00000400 Part No.: HY00000400 $0.44 Add To Cart 017 MAKITA DRIVER COMPLETE P/N:HY00000911 Part No.: HY00000911 $13.52 Add To Cart 018 MAKITA CYLINDER SEPARATER P/N:HY00000912 Part No.: HY00000912 $2.07 Add To Cart 021 MAKITA CYLINDER P/N:HY00000913 Part No.: HY00000913 $8.61 Add To Cart 025 MAKITA DRIVER GUIDE P/N:HY00000914 Part No.: HY00000914 $14.28 Add To Cart 026 MAKITA RUBBER RING 2 P/N:HY00000043 Part No.: HY00000043 $0.22 Add To Cart 027 MAKITA COVER PLATE PIN P/N:HY00000915 Part No.: HY00000915 $0.44 Add To Cart 028 MAKITA PLATE P/N:HY00000916 Part No.: HY00000916 $5.56 Add To Cart 029 MAKITA HEX SOCKET HEAD BOLT M5X20 P/N:HY00000005 Part No.: HY00000005 $0.87 Add To Cart 030 MAKITA LATCH P/N:HY00000917 Part No.: HY00000917 $1.31 Add To Cart 031 MAKITA DOOR P/N:HY00000918 Part No.: HY00000918 $7.85 Add To Cart 033 MAKITA LATCH COVER P/N:HY00000919 Part No.: HY00000919 $0.87 Add To Cart 035 MAKITA FROMT SEAL P/N:HY00000023 Part No.: HY00000023 $0.76 Add To Cart 040 MAKITA CONTACT ARM COMPLETE P/N:HY00000950 Part No.: HY00000950 $5.23 Add To Cart 043 MAKITA CONTACT TOP P/N:HY00000923 Part No.: HY00000923 $2.18 Add To Cart 045 MAKITA HEX.LOCK NUT M5 P/N:HY00000924 Part No.: HY00000924 $0.33 Add To Cart 046 MAKITA JOINT P/N:HY00000925 Part No.: HY00000925 $0.98 Add To Cart 048 MAKITA HEX.SOCKET HEAD BOLT M4X6 P/N:HY00000926 Part No.: HY00000926 $0.76 Add To Cart 049 MAKITA SENSORMATIC CHIP P/N:HY00000927 Part No.: HY00000927 $1.42 Add To Cart 050 MAKITA CAUTION LABEL 1 P/N:HY00000928 Part No.: HY00000928 $0.76 Add To Cart 051 MAKITA MAGAZINE P/N:HY00000929 Part No.: HY00000929 $15.81 Add To Cart 052 MAKITA AF506 NAME PLATE P/N:HY00000930 Part No.: HY00000930 $0.76 Add To Cart 053 MAKITA CAUTION LABEL P/N:HY00000931 Part No.: HY00000931 $0.44 Add To Cart 054 MAKITA FOOK FOR AF505 P/N:HY00000062 Part No.: HY00000062 $1.42 Add To Cart 057 MAKITA SPRING PIN 3-26 P/N:HY00000024 Part No.: HY00000024 $0.55 Add To Cart 058 MAKITA O-RING 3 P/N:HY00000037 Part No.: HY00000037 $0.33 Add To Cart 060 MAKITA IDLER P/N:HY00000932 Part No.: HY00000932 $1.09 Add To Cart 061 MAKITA PIN4 P/N:HY00000933 Part No.: HY00000933 $0.44 Add To Cart 063 MAKITA RUBBER RNG 8 P/N:HY00000033 Part No.: HY00000033 $0.33 Add To Cart 066 MAKITA TRIGGER VALVE STEM P/N:HY00000934 Part No.: HY00000934 $0.98 Add To Cart 067 MAKITA O-RING 11 P/N:HY00000039 Part No.: HY00000039 $0.44 Add To Cart 068 MAKITA TRIGGER VALVE CASE P/N:HY00000038 Part No.: HY00000038 $1.96 Add To Cart 069 MAKITA COMPRESSION SPRING 10 P/N:HY00000040 Part No.: HY00000040 $0.44 Add To Cart 070 MAKITA PUSHER P/N:HY00000935 Part No.: HY00000935 $0.76 Add To Cart 071 MAKITA PIN7 P/N:HY00000936 Part No.: HY00000936 $0.44 Add To Cart 072 MAKITA COMPRESSION SPRING 6 P/N:HY00000059 Part No.: HY00000059 $1.74 Add To Cart 073 MAKITA MAGAZINE RAIL P/N:HY00000937 Part No.: HY00000937 $1.09 Add To Cart 074 MAKITA SLIDE DOOR P/N:HY00000938 Part No.: HY00000938 $8.07 Add To Cart 076 MAKITA PIN 2 FOR AF505 P/N:HY00000046 Part No.: HY00000046 $0.55 Add To Cart 083 MAKITA SPRING PIN 2.5-18 P/N:HY00000054 Part No.: HY00000054 $0.44 Add To Cart 089 MAKITA LOCK LEVER P/N:HY00000941 Part No.: HY00000941 $1.09 Add To Cart 090 MAKITA SLEEVE 4 P/N:HY00000942 Part No.: HY00000942 $1.09 Add To Cart 091 MAKITA COMPRESSION SPRING 5 P/N:HY00000943 Part No.: HY00000943 $0.33 Add To Cart 092 MAKITA SLIDE DOOR CAP P/N:HY00000944 Part No.: HY00000944 $2.07 Add To Cart 094 MAKITA CAP BUMPER P/N:HY00000945 Part No.: HY00000945 $1.42 Add To Cart 095 MAKITA HOUSING COMPLETE FOR AF506 P/N:HY00000946 Part No.: HY00000946 $39.89 Add To Cart 096 MAKITA MAGAZINE ASSEMBLY P/N:HY00000947 Part No.: HY00000947 $29.65 Add To Cart 097 MAKITA TRIGGER ASSEMBLY P/N:HY00000948 Part No.: HY00000948 $2.18 Add To Cart 104 MAKITA O-RING 3 P/N:HY00000037 Part No.: HY00000037 $0.33 Add To Cart 105 MAKITA O-RING 3 P/N:HY00000037 Part No.: HY00000037 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HEX. SOCKET HEAD BOLT M4*10 P/N:HY00000001 Part No.: HY00000001
• 002: MAKITA SLEEVE 4 P/N:HY00000002 Part No.: HY00000002
• 004: MAKITA RUBBER WASHER 7 FOR AF505 P/N:HY00000004 Part No.: HY00000004
• 005: MAKITA HEX SCOKET HEAD BOLT M5*22 P/N:HY00000049 Part No.: HY00000049
• 009: MAKITA CUSHION V FOR AF505 P/N:HY00000008 Part No.: HY00000008
• 011: MAKITA O-RING 12 P/N:HY00000010 Part No.: HY00000010
• 012: MAKITA O-RING 33 P/N:HY00000011 Part No.: HY00000011
• 014: MAKITA O RING 26.5 P/N:HY00000408 Part No.: HY00000408
• 015: MAKITA CUSHION P P/N:HY00000014 Part No.: HY00000014
• 016: MAKITA O RING 22.5 P/N:HY00000400 Part No.: HY00000400
• 017: MAKITA DRIVER COMPLETE P/N:HY00000911 Part No.: HY00000911
• 018: MAKITA CYLINDER SEPARATER P/N:HY00000912 Part No.: HY00000912
• 021: MAKITA CYLINDER P/N:HY00000913 Part No.: HY00000913
• 025: MAKITA DRIVER GUIDE P/N:HY00000914 Part No.: HY00000914
• 026: MAKITA RUBBER RING 2 P/N:HY00000043 Part No.: HY00000043
• 027: MAKITA COVER PLATE PIN P/N:HY00000915 Part No.: HY00000915
• 028: MAKITA PLATE P/N:HY00000916 Part No.: HY00000916
• 029: MAKITA HEX SOCKET HEAD BOLT M5X20 P/N:HY00000005 Part No.: HY00000005
• 030: MAKITA LATCH P/N:HY00000917 Part No.: HY00000917
• 031: MAKITA DOOR P/N:HY00000918 Part No.: HY00000918
• 033: MAKITA LATCH COVER P/N:HY00000919 Part No.: HY00000919
• 035: MAKITA FROMT SEAL P/N:HY00000023 Part No.: HY00000023
• 040: MAKITA CONTACT ARM COMPLETE P/N:HY00000950 Part No.: HY00000950
• 043: MAKITA CONTACT TOP P/N:HY00000923 Part No.: HY00000923
• 045: MAKITA HEX.LOCK NUT M5 P/N:HY00000924 Part No.: HY00000924
• 046: MAKITA JOINT P/N:HY00000925 Part No.: HY00000925
• 048: MAKITA HEX.SOCKET HEAD BOLT M4X6 P/N:HY00000926 Part No.: HY00000926
• 049: MAKITA SENSORMATIC CHIP P/N:HY00000927 Part No.: HY00000927
• 050: MAKITA CAUTION LABEL 1 P/N:HY00000928 Part No.: HY00000928
• 051: MAKITA MAGAZINE P/N:HY00000929 Part No.: HY00000929
• 052: MAKITA AF506 NAME PLATE P/N:HY00000930 Part No.: HY00000930
• 053: MAKITA CAUTION LABEL P/N:HY00000931 Part No.: HY00000931
• 054: MAKITA FOOK FOR AF505 P/N:HY00000062 Part No.: HY00000062
• 057: MAKITA SPRING PIN 3-26 P/N:HY00000024 Part No.: HY00000024
• 058: MAKITA O-RING 3 P/N:HY00000037 Part No.: HY00000037
• 060: MAKITA IDLER P/N:HY00000932 Part No.: HY00000932
• 061: MAKITA PIN4 P/N:HY00000933 Part No.: HY00000933
• 063: MAKITA RUBBER RNG 8 P/N:HY00000033 Part No.: HY00000033
• 066: MAKITA TRIGGER VALVE STEM P/N:HY00000934 Part No.: HY00000934
