MAKITA 9924DB BELT SANDER 76MM SPARE PARTS

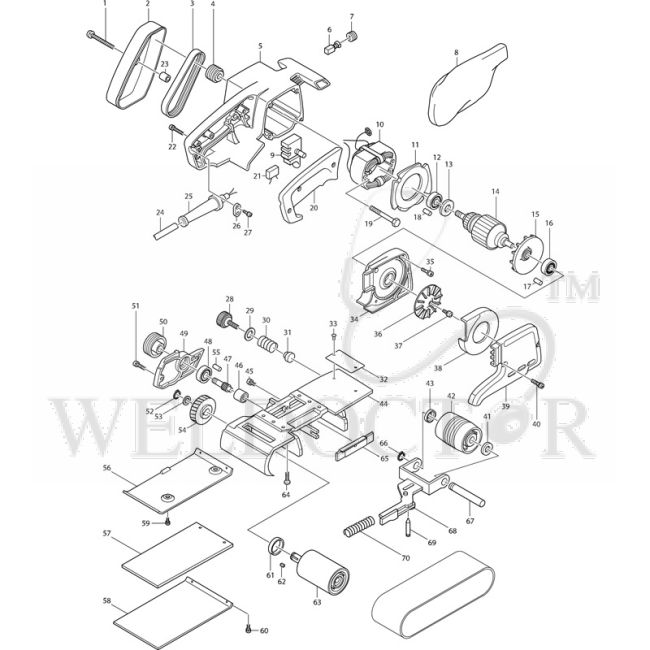

Spare Parts of Makita 9924DB Belt Sander Ref. No. Part Name & Number Price 001 MAKITA PAN HEAD SCREW M5X40 FOR 6802BV P/N:911261-6 Part No.: 911261-6 $0.44 Add To Cart 002 MAKITA BELT COVER FOR 9924DB P/N:343270-1 Part No.: 343270-1 $7.19 Add To Cart 003 MAKITA POLY V-BELT 5-304 FOR 9924DB P/N:225008-5 Part No.: 225008-5 $13.08 Add To Cart 004 MAKITA V-PULLEY 5-25L FOR 9924DB P/N:222010-9 Part No.: 222010-9 $4.36 Add To Cart 005 MAKITA MOTOR HOUSING FOR 9924B P/N:156490-6 Part No.: 156490-6 $42.07 Add To Cart 007 MAKITA BRUSH HOLDER CAP 6-10 FOR HM0810 P/N:643600-9 Part No.: 643600-9 $0.55 Add To Cart 009 MAKITA SWITCH SGEL115CDY FOR 4300BA P/N:651204-3 Part No.: 651204-3 $4.25 Add To Cart 011 MAKITA BAFFLE PLATE FOR 9924DB P/N:411322-7 Part No.: 411322-7 $1.64 Add To Cart 012 MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7 $2.94 Add To Cart 017 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 018 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 020 MAKITA HANDLE COVER FOR 9924DB P/N:411321-9 Part No.: 411321-9 $6.43 Add To Cart 022 MAKITA PAN HEAD SCREW M4X30 FOR 1911B P/N:911158-9 Part No.: 911158-9 $0.33 Add To Cart 023 MAKITA SLEEVE 6 FOR 9401 P/N:257504-5 Part No.: 257504-5 $0.55 Add To Cart 028 MAKITA SCREW M6X25 FOR 3700B / N3701 P/N : 251815-0 Part No.: 251815-0 $1.20 Add To Cart 029 MAKITA FLAT WASHER 16 FOR 6000R P/N:253707-9 Part No.: 253707-9 $0.44 Add To Cart 030 MAKITA COMPRESSION SPRING 16 FOR 9924DB P/N:231225-7 Part No.: 231225-7 $0.33 Add To Cart 031 MAKITA SHOE FOR 9924DB P/N:411594-4 Part No.: 411594-4 $0.55 Add To Cart 033 MAKITA RIVET 0-5 (SET) FOR 3501N P/N:953106-2 Part No.: 953106-2 $0.22 Add To Cart 035 MAKITA PAN HEAD SCREW M5X25 FOR 3601B P/N:911241-2 Part No.: 911241-2 $0.33 Add To Cart 036 MAKITA FAN 74 FOR 9401 P/N:241611-4 Part No.: 241611-4 $5.67 Add To Cart 037 MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1 $0.33 Add To Cart 038 MAKITA SEPARATOR FOR 9924DB P/N:343271-9 Part No.: 343271-9 $3.82 Add To Cart 039 MAKITA DUST COLLECTOR COVER FOR 9924DB P/N:312809-1 Part No.: 312809-1 $11.99 Add To Cart 040 MAKITA PAN HEAD SCREW M4X18 FOR 9924DB P/N:911131-9 Part No.: 911131-9 $0.33 Add To Cart 041 MAKITA CUP WASHER 12 FOR 9401 P/N:253922-5 Part No.: 253922-5 $0.44 Add To Cart 042 MAKITA TENSION ROLLER COMPLETE FOR 9924DB P/N:152104-5 Part No.: 152104-5 $27.36 Add To Cart 043 MAKITA CUP WASHER 12 FOR 9401 P/N:253922-5 Part No.: 253922-5 $0.44 Add To Cart 045 MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1 $0.33 Add To Cart 046 MAKITA NEEDLE BEARING 810 FOR 6013BR P/N:212003-4 Part No.: 212003-4 $3.82 Add To Cart 047 MAKITA HELICAL GEAR 10 FOR 9401 P/N:221193-2 Part No.: 221193-2 $11.45 Add To Cart 048 MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7 $2.94 Add To Cart 050 MAKITA V-PULLEY 5-45 FOR 9924DB P/N:222011-7 Part No.: 222011-7 $12.10 Add To Cart 051 MAKITA PAN HEAD SCREW M4X18 FOR 9924DB P/N:911131-9 Part No.: 911131-9 $0.33 Add To Cart 052 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 053 MAKITA THIN WASHER 12 FOR 9401 P/N:253312-2 Part No.: 253312-2 $0.44 Add To Cart 054 MAKITA HELICAL GEAR 48 FOR 9924DB P/N:221070-8 Part No.: 221070-8 $16.90 Add To Cart 055 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 056 MAKITA BASE PLATE FOR 9924DB P/N:341647-4 Part No.: 341647-4 $10.36 Add To Cart 059 MAKITA PAN HEAD SCREW M4X10 FOR 4304 P/N:911111-5 Part No.: 911111-5 $0.11 Add To Cart 060 MAKITA PAN HEAD SCREW M4X10 FOR 9924DB P/N:911114-9 Part No.: 911114-9 $0.33 Add To Cart 061 MAKITA CUP WASHER 12 FOR 9401 P/N:253922-5 Part No.: 253922-5 $0.44 Add To Cart 062 MAKITA KEY 4 FOR LS1212 P/N:254202-2 Part No.: 254202-2 $0.65 Add To Cart 063 MAKITA DRIVING ROLLER COMPLETE FOR 9924DB P/N:151113-1 Part No.: 151113-1 $42.18 Add To Cart 064 MAKITA COUNTERSUNK HEAD SCREW M5X18 FOR 9401 P/N:912227-9 Part No.: 912227-9 $0.44 Add To Cart 066 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 067 MAKITA TENSION ROLLER SHAFT FOR 9924DB P/N:325458-5 Part No.: 325458-5 $5.56 Add To Cart 068 MAKITA TENSION ROLLER ARM FOR 9924DB P/N:163104-0 Part No.: 163104-0 $18.97 Add To Cart 069 MAKITA SUPPORT PIN FOR 9924DB P/N:323634-5 Part No.: 323634-5 $1.64 Add To Cart 070 MAKITA COMPRESSION SPRING 11 FOR 9924DB P/N:231033-6 Part No.: 231033-6 $0.76 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PAN HEAD SCREW M5X40 FOR 6802BV P/N:911261-6 Part No.: 911261-6
• 002: MAKITA BELT COVER FOR 9924DB P/N:343270-1 Part No.: 343270-1
• 003: MAKITA POLY V-BELT 5-304 FOR 9924DB P/N:225008-5 Part No.: 225008-5
• 004: MAKITA V-PULLEY 5-25L FOR 9924DB P/N:222010-9 Part No.: 222010-9
• 005: MAKITA MOTOR HOUSING FOR 9924B P/N:156490-6 Part No.: 156490-6
• 007: MAKITA BRUSH HOLDER CAP 6-10 FOR HM0810 P/N:643600-9 Part No.: 643600-9
• 009: MAKITA SWITCH SGEL115CDY FOR 4300BA P/N:651204-3 Part No.: 651204-3
• 011: MAKITA BAFFLE PLATE FOR 9924DB P/N:411322-7 Part No.: 411322-7
• 012: MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7
• 017: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 018: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 020: MAKITA HANDLE COVER FOR 9924DB P/N:411321-9 Part No.: 411321-9
• 022: MAKITA PAN HEAD SCREW M4X30 FOR 1911B P/N:911158-9 Part No.: 911158-9
• 023: MAKITA SLEEVE 6 FOR 9401 P/N:257504-5 Part No.: 257504-5
• 028: MAKITA SCREW M6X25 FOR 3700B / N3701 P/N : 251815-0 Part No.: 251815-0
• 029: MAKITA FLAT WASHER 16 FOR 6000R P/N:253707-9 Part No.: 253707-9
• 030: MAKITA COMPRESSION SPRING 16 FOR 9924DB P/N:231225-7 Part No.: 231225-7
• 031: MAKITA SHOE FOR 9924DB P/N:411594-4 Part No.: 411594-4
• 033: MAKITA RIVET 0-5 (SET) FOR 3501N P/N:953106-2 Part No.: 953106-2
• 035: MAKITA PAN HEAD SCREW M5X25 FOR 3601B P/N:911241-2 Part No.: 911241-2
• 036: MAKITA FAN 74 FOR 9401 P/N:241611-4 Part No.: 241611-4
• 037: MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1
• 038: MAKITA SEPARATOR FOR 9924DB P/N:343271-9 Part No.: 343271-9
• 039: MAKITA DUST COLLECTOR COVER FOR 9924DB P/N:312809-1 Part No.: 312809-1
• 040: MAKITA PAN HEAD SCREW M4X18 FOR 9924DB P/N:911131-9 Part No.: 911131-9
• 041: MAKITA CUP WASHER 12 FOR 9401 P/N:253922-5 Part No.: 253922-5
• 042: MAKITA TENSION ROLLER COMPLETE FOR 9924DB P/N:152104-5 Part No.: 152104-5
• 043: MAKITA CUP WASHER 12 FOR 9401 P/N:253922-5 Part No.: 253922-5
• 045: MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1
• 046: MAKITA NEEDLE BEARING 810 FOR 6013BR P/N:212003-4 Part No.: 212003-4
• 047: MAKITA HELICAL GEAR 10 FOR 9401 P/N:221193-2 Part No.: 221193-2
• 048: MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7
• 050: MAKITA V-PULLEY 5-45 FOR 9924DB P/N:222011-7 Part No.: 222011-7
• 051: MAKITA PAN HEAD SCREW M4X18 FOR 9924DB P/N:911131-9 Part No.: 911131-9
• 052: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 053: MAKITA THIN WASHER 12 FOR 9401 P/N:253312-2 Part No.: 253312-2
• 054: MAKITA HELICAL GEAR 48 FOR 9924DB P/N:221070-8 Part No.: 221070-8
• 055: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 056: MAKITA BASE PLATE FOR 9924DB P/N:341647-4 Part No.: 341647-4
