MAKITA 9500NB DISC GRINDER 100MM SPARE PARTS

Spare Parts of Makita 9500NB Disc Grinder Ref. No. Part Name & Number Price 001 MAKITA PAN HEAD SCREW M4X20 FOR N1900B P/N:911136-9 Part No.: 911136-9 $0.33 Add To Cart 002 MAKITA GEAR HOUSING FOR N9500N/9500NB P/N:156448-5 Part No.: 156448-5 $22.02 Add To Cart 003 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 005 MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6 $0.55 Add To Cart 006 MAKITA BALL BEARING 6201LLB FOR HM0810 P/N:211106-1 Part No.: 211106-1 $3.05 Add To Cart 007 MAKITA FLAT WASHER 12 FOR N9500N/9500NB P/N:253055-6 Part No.: 253055-6 $0.44 Add To Cart 008 MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0 $0.55 Add To Cart 009 MAKITA SPINDLE 1.25 FOR N9500N P/N:325585-8 Part No.: 325585-8 $27.58 Add To Cart 010 MAKITA FELT RING 18 FOR N9500N/9500NB P/N:443034-4 Part No.: 443034-4 $0.44 Add To Cart 011 MAKITA BEARING BOX FOR N9500N P/N: 312998-2 Part No.: 312998-2 $6.32 Add To Cart 012 MAKITA PAN HEAD SCREW M4X14 FOR 9526B P/N:911121-2 Part No.: 911121-2 $0.11 Add To Cart 018 MAKITA SPIRAL BEVEL GEAR 14 FOR N9500N/9500NB P/N:221318-8 Part No.: 221318-8 $10.79 Add To Cart 021 MAKITA PLATE FOR N9500N/9500NB P/N:341398-9 Part No.: 341398-9 $2.07 Add To Cart 022 MAKITA FAN 60 FOR 9500NB P/N:240041-6 Part No.: 240041-6 $3.82 Add To Cart 023 MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0 $0.55 Add To Cart 025 MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0 $0.33 Add To Cart 026 MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7 $2.73 Add To Cart 027 MAKITA RUBBER RING 19 FOR HR2450/4304 P/N:421494-0 Part No.: 421494-0 $4.58 Add To Cart 028 MAKITA PAN HEAD SCREW M4X70 FOR N9500N/9500NB P/N:911596-5 Part No.: 911596-5 $0.87 Add To Cart 030 MAKITA HEX. NUT M12 FOR 3700B P/N:652102-4 Part No.: 652102-4 $0.65 Add To Cart 032 MAKITA SUPPORT FOR 9500NB P/N:687116-4 Part No.: 687116-4 $1.31 Add To Cart 033 MAKITA MOTOR HOUSING COMPLETE FOR 9500NB P/N:152675-2 Part No.: 152675-2 $23.00 Add To Cart 035 MAKITA BRUSH HOLDER CAP 5-8 FOR N1900B P/N:643550-8 Part No.: 643550-8 $0.65 Add To Cart 037 MAKITA TERMINAL BLOCK 1P FOR 5806B BO4556 P/N:654532-5 Part No.: 654532-5 $0.55 Add To Cart 039 MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7 $0.33 Add To Cart 040 MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5 $0.76 Add To Cart 042 MAKITA REAR COVER FOR 9500NB P/N:417388-5 Part No.: 417388-5 $4.80 Add To Cart 043 MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5 $0.33 Add To Cart

Brand: Makita

Specifications:

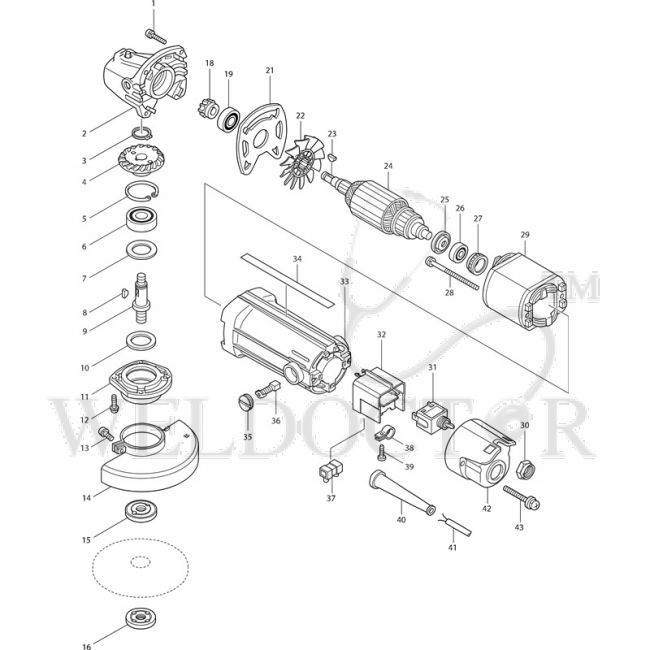

• Ref. No.: Part Name & Number
• 001: MAKITA PAN HEAD SCREW M4X20 FOR N1900B P/N:911136-9 Part No.: 911136-9
• 002: MAKITA GEAR HOUSING FOR N9500N/9500NB P/N:156448-5 Part No.: 156448-5
• 003: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 005: MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6
• 006: MAKITA BALL BEARING 6201LLB FOR HM0810 P/N:211106-1 Part No.: 211106-1
• 007: MAKITA FLAT WASHER 12 FOR N9500N/9500NB P/N:253055-6 Part No.: 253055-6
• 008: MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0
• 009: MAKITA SPINDLE 1.25 FOR N9500N P/N:325585-8 Part No.: 325585-8
• 010: MAKITA FELT RING 18 FOR N9500N/9500NB P/N:443034-4 Part No.: 443034-4
• 011: MAKITA BEARING BOX FOR N9500N P/N: 312998-2 Part No.: 312998-2
• 012: MAKITA PAN HEAD SCREW M4X14 FOR 9526B P/N:911121-2 Part No.: 911121-2
• 018: MAKITA SPIRAL BEVEL GEAR 14 FOR N9500N/9500NB P/N:221318-8 Part No.: 221318-8
• 021: MAKITA PLATE FOR N9500N/9500NB P/N:341398-9 Part No.: 341398-9
• 022: MAKITA FAN 60 FOR 9500NB P/N:240041-6 Part No.: 240041-6
• 023: MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0
• 025: MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0
• 026: MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7
• 027: MAKITA RUBBER RING 19 FOR HR2450/4304 P/N:421494-0 Part No.: 421494-0
• 028: MAKITA PAN HEAD SCREW M4X70 FOR N9500N/9500NB P/N:911596-5 Part No.: 911596-5
• 030: MAKITA HEX. NUT M12 FOR 3700B P/N:652102-4 Part No.: 652102-4
• 032: MAKITA SUPPORT FOR 9500NB P/N:687116-4 Part No.: 687116-4
• 033: MAKITA MOTOR HOUSING COMPLETE FOR 9500NB P/N:152675-2 Part No.: 152675-2
• 035: MAKITA BRUSH HOLDER CAP 5-8 FOR N1900B P/N:643550-8 Part No.: 643550-8
• 037: MAKITA TERMINAL BLOCK 1P FOR 5806B BO4556 P/N:654532-5 Part No.: 654532-5
• 039: MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7
• 040: MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5
• 042: MAKITA REAR COVER FOR 9500NB P/N:417388-5 Part No.: 417388-5
• 043: MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5
