MAKITA 4100NH CUTTER 110MM SPARE PARTS

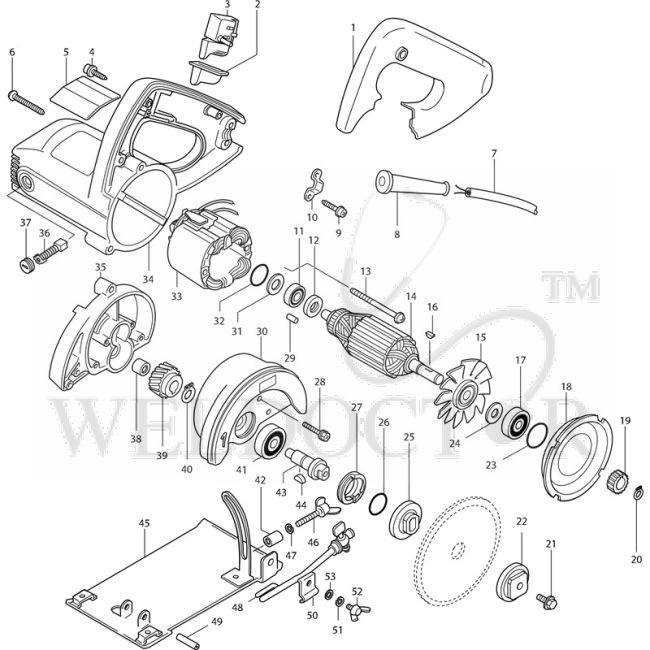

Spare Parts of Makita 4100NH Cutter Ref. No. Part Name & Number Price 001 MAKITA HANDLE COVER FOR 4100NH P/N:415600-7 Part No.: 415600-7 $2.94 Add To Cart 002 MAKITA DUST COVER FOR 4100NH P/N:421329-5 Part No.: 421329-5 $0.76 Add To Cart 003 MAKITA SWITCH SGEL115CDY FOR 4300BA P/N:651204-3 Part No.: 651204-3 $4.25 Add To Cart 004 MAKITA TAPPING SCREW FLANGE PT 4X20 FOR 4100NH P/N:266045-0 Part No.: 266045-0 $0.33 Add To Cart 006 MAKITA PAN HEAD SCREW M5X40 FOR 4140 P/N:911263-2 Part No.: 911263-2 $0.33 Add To Cart 009 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 011 MAKITA BALL BEARING 608LB FOR 5806B P/N:211033-2 Part No.: 211033-2 $1.85 Add To Cart 012 MAKITA INSULATION WASHER FOR HM0810 P/N:681625-5 Part No.: 681625-5 $0.33 Add To Cart 013 MAKITA TAPPING SCREW FLANGE PT 5X65 FOR 4100NH P/N:266029-8 Part No.: 266029-8 $0.87 Add To Cart 016 MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0 $0.55 Add To Cart 018 MAKITA BAFFLE PLATE FOR 4100NH P/N:343289-0 Part No.: 343289-0 $0.98 Add To Cart 020 MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6 $0.11 Add To Cart 021 MAKITA HEX. FLANGE HEAD BOLT M6X17 FOR 4140 P/N:265226-3 Part No.: 265226-3 $0.33 Add To Cart 022 MAKITA OUTER FLANGE 36 FOR 4100NH P/N:224081-2 Part No.: 224081-2 $1.09 Add To Cart 024 MAKITA FLAT WASHER 9 FOR 4100NH P/N:253741-9 Part No.: 253741-9 $0.22 Add To Cart 025 MAKITA INNER FLANGE 36 FOR 4100NH P/N:224080-4 Part No.: 224080-4 $0.98 Add To Cart 026 MAKITA O RING 18 FOR 4100NH P/N:213255-0 Part No.: 213255-0 $0.33 Add To Cart 027 MAKITA BEARING RETAINER 19-33 FOR 4100NH P/N:285815-8 Part No.: 285815-8 $1.85 Add To Cart 028 MAKITA '+ HEX. BOLT M4X25 FOR 4100NH P/N:925146-0 Part No.: 925146-0 $0.33 Add To Cart 029 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 031 MAKITA FLAT WASHER 14 FOR 5806B P/N:253192-6 Part No.: 253192-6 $0.33 Add To Cart 032 MAKITA O RING 18 FOR 4100NH HR2810 P/N:213262-3 Part No.: 213262-3 $0.33 Add To Cart 034 MAKITA MOTOR HOUSING FOR 4100NH P/N:159767-8 Part No.: 159767-8 $18.53 Add To Cart 037 MAKITA BRUSH HOLDER CAP FOR 4100NH/PV7000C P/N:643750-0 Part No.: 643750-0 $0.44 Add To Cart 038 MAKITA NEEDLE BEARING 810 FOR 4100NH P/N:212004-2 Part No.: 212004-2 $3.82 Add To Cart 040 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 042 MAKITA SLEEVE 7 FOR 4100NH P/N:257507-9 Part No.: 257507-9 $0.98 Add To Cart 043 MAKITA SPINDLE FOR 4100NH P/N:321197-5 Part No.: 321197-5 $4.36 Add To Cart 045 MAKITA BASE FOR 4100NH P/N:164195-4 Part No.: 164195-4 $8.28 Add To Cart 046 MAKITA WING BOLT M6X28 FOR 4100NH P/N:924341-9 Part No.: 924341-9 $0.76 Add To Cart 047 MAKITA SPRING WASHER 6 FOR HM0810 P/N:942151-2 Part No.: 942151-2 $0.11 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HANDLE COVER FOR 4100NH P/N:415600-7 Part No.: 415600-7
• 002: MAKITA DUST COVER FOR 4100NH P/N:421329-5 Part No.: 421329-5
• 003: MAKITA SWITCH SGEL115CDY FOR 4300BA P/N:651204-3 Part No.: 651204-3
• 004: MAKITA TAPPING SCREW FLANGE PT 4X20 FOR 4100NH P/N:266045-0 Part No.: 266045-0
• 006: MAKITA PAN HEAD SCREW M5X40 FOR 4140 P/N:911263-2 Part No.: 911263-2
• 009: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 011: MAKITA BALL BEARING 608LB FOR 5806B P/N:211033-2 Part No.: 211033-2
• 012: MAKITA INSULATION WASHER FOR HM0810 P/N:681625-5 Part No.: 681625-5
• 013: MAKITA TAPPING SCREW FLANGE PT 5X65 FOR 4100NH P/N:266029-8 Part No.: 266029-8
• 016: MAKITA WOODRUFF KEY 3 P/N:254002-0 Part No.: 254002-0
• 018: MAKITA BAFFLE PLATE FOR 4100NH P/N:343289-0 Part No.: 343289-0
• 020: MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6
• 021: MAKITA HEX. FLANGE HEAD BOLT M6X17 FOR 4140 P/N:265226-3 Part No.: 265226-3
• 022: MAKITA OUTER FLANGE 36 FOR 4100NH P/N:224081-2 Part No.: 224081-2
• 024: MAKITA FLAT WASHER 9 FOR 4100NH P/N:253741-9 Part No.: 253741-9
• 025: MAKITA INNER FLANGE 36 FOR 4100NH P/N:224080-4 Part No.: 224080-4
• 026: MAKITA O RING 18 FOR 4100NH P/N:213255-0 Part No.: 213255-0
• 027: MAKITA BEARING RETAINER 19-33 FOR 4100NH P/N:285815-8 Part No.: 285815-8
• 028: MAKITA '+ HEX. BOLT M4X25 FOR 4100NH P/N:925146-0 Part No.: 925146-0
• 029: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 031: MAKITA FLAT WASHER 14 FOR 5806B P/N:253192-6 Part No.: 253192-6
• 032: MAKITA O RING 18 FOR 4100NH HR2810 P/N:213262-3 Part No.: 213262-3
• 034: MAKITA MOTOR HOUSING FOR 4100NH P/N:159767-8 Part No.: 159767-8
• 037: MAKITA BRUSH HOLDER CAP FOR 4100NH/PV7000C P/N:643750-0 Part No.: 643750-0
• 038: MAKITA NEEDLE BEARING 810 FOR 4100NH P/N:212004-2 Part No.: 212004-2
• 040: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 042: MAKITA SLEEVE 7 FOR 4100NH P/N:257507-9 Part No.: 257507-9
• 043: MAKITA SPINDLE FOR 4100NH P/N:321197-5 Part No.: 321197-5
• 045: MAKITA BASE FOR 4100NH P/N:164195-4 Part No.: 164195-4
• 046: MAKITA WING BOLT M6X28 FOR 4100NH P/N:924341-9 Part No.: 924341-9
• 047: MAKITA SPRING WASHER 6 FOR HM0810 P/N:942151-2 Part No.: 942151-2
