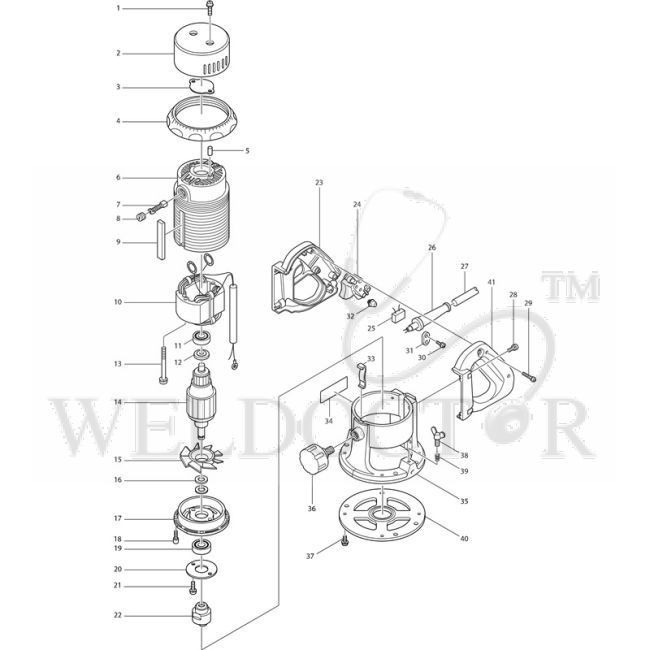

MAKITA 3601B ROUTER 12MM SPARE PARTS

Spare Parts of Makita 3601B Router Ref. No. Part Name & Number Price 002 MAKITA REAR COVER FOR 3601B P/N:284042-4 Part No.: 284042-4 $22.56 Add To Cart 003 MAKITA BEARING COVER 45 FOR 3601B P/N:285016-8 Part No.: 285016-8 $1.85 Add To Cart 004 MAKITA SCALE RING FOR 3601B P/N:411372-2 Part No.: 411372-2 $9.70 Add To Cart 005 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 008 MAKITA BRUSH HOLDER CAP 6.5-13.5 FOR 3612BR P/N:643650-4 Part No.: 643650-4 $0.44 Add To Cart 016 MAKITA FLAT WASHER 12 FOR 3601B P/N:253748-5 Part No.: 253748-5 $0.55 Add To Cart 018 MAKITA PAN HEAD SCREW M5X25 FOR 3601B P/N:911241-2 Part No.: 911241-2 $0.33 Add To Cart 020 MAKITA BEARING RETAINER 40 FOR 3601B P/N:285612-2 Part No.: 285612-2 $1.20 Add To Cart 023 MAKITA HANDLE SET FOR 3601B P/N:181148-8 Part No.: 181148-8 $17.11 Add To Cart 028 MAKITA PAN HEAD SCREW M5X20 P/N:911233-1 Part No.: 911233-1 $0.33 Add To Cart 029 MAKITA PAN HEAD SCREW M4X28 FOR 4300BV P/N:911153-9 Part No.: 911153-9 $0.33 Add To Cart 032 MAKITA PAN HEAD SCREW M4X6 FOR 3601B P/N:911103-4 Part No.: 911103-4 $0.33 Add To Cart 033 MAKITA LOCK PLATE FOR 3601B P/N:342290-2 Part No.: 342290-2 $1.20 Add To Cart 036 MAKITA KNOB 52 FOR 3601B P/N : 271213-2 Part No.: 271213-2 $5.34 Add To Cart 037 MAKITA PAN HEAD SCREW M5X10 FOR 3600H P/N:911207-2 Part No.: 911207-2 $0.33 Add To Cart 038 MAKITA WING BOLT M6X20 FOR 3501N/5740NB P/N:924326-5 Part No.: 924326-5 $1.09 Add To Cart 039 MAKITA COMPRESSION SPRING 7 FOR 3601B P/N:231005-1 Part No.: 231005-1 $0.33 Add To Cart 040 MAKITA BASE PLATE 3600 P/NO:411023-7 Part No.: 411023-7 $10.59 Add To Cart 041 MAKITA HANDLE SET FOR 3601B P/N:181148-8 Part No.: 181148-8 $17.11 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA REAR COVER FOR 3601B P/N:284042-4 Part No.: 284042-4
• 003: MAKITA BEARING COVER 45 FOR 3601B P/N:285016-8 Part No.: 285016-8
• 004: MAKITA SCALE RING FOR 3601B P/N:411372-2 Part No.: 411372-2
• 005: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 008: MAKITA BRUSH HOLDER CAP 6.5-13.5 FOR 3612BR P/N:643650-4 Part No.: 643650-4
• 016: MAKITA FLAT WASHER 12 FOR 3601B P/N:253748-5 Part No.: 253748-5
• 018: MAKITA PAN HEAD SCREW M5X25 FOR 3601B P/N:911241-2 Part No.: 911241-2
• 020: MAKITA BEARING RETAINER 40 FOR 3601B P/N:285612-2 Part No.: 285612-2
• 023: MAKITA HANDLE SET FOR 3601B P/N:181148-8 Part No.: 181148-8
• 028: MAKITA PAN HEAD SCREW M5X20 P/N:911233-1 Part No.: 911233-1
• 029: MAKITA PAN HEAD SCREW M4X28 FOR 4300BV P/N:911153-9 Part No.: 911153-9
• 032: MAKITA PAN HEAD SCREW M4X6 FOR 3601B P/N:911103-4 Part No.: 911103-4
• 033: MAKITA LOCK PLATE FOR 3601B P/N:342290-2 Part No.: 342290-2
• 036: MAKITA KNOB 52 FOR 3601B P/N : 271213-2 Part No.: 271213-2
• 037: MAKITA PAN HEAD SCREW M5X10 FOR 3600H P/N:911207-2 Part No.: 911207-2
• 038: MAKITA WING BOLT M6X20 FOR 3501N/5740NB P/N:924326-5 Part No.: 924326-5
• 039: MAKITA COMPRESSION SPRING 7 FOR 3601B P/N:231005-1 Part No.: 231005-1
• 040: MAKITA BASE PLATE 3600 P/NO:411023-7 Part No.: 411023-7
• 041: MAKITA HANDLE SET FOR 3601B P/N:181148-8 Part No.: 181148-8
