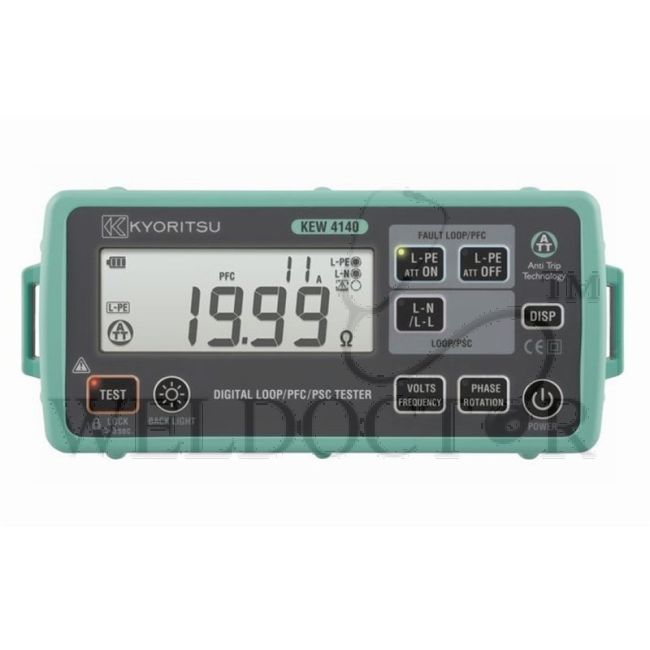

KYORITSU LOOP/PFC/PSC TESTER KEW 4140

Anti-Trip Technology for complete trip free Loop testing on all RCDs rated 30mA and above. Dual Display allows simultaneous measurements like Loop & PFC/PSC. Two wire connection for Loop L-L, L-N and PSC testing is possible. Phase rotation, Voltage and Frequency measurements. Lock-down test button for hands free testing with auto-start operation. Display and front panel keyboards with Backlight to be visible in dark places. Water and Dust proof (IP54)

Specifications:

• Function: L-PE ATT OFF
• Rated Voltage: 230V (50/60Hz)
• Operating Voltage: 100 - 280V (45 - 65Hz)
• Range (Auto-Ranging): 20/200/2000Ω
• NoMinal Test Current at 0Ω External Loop: Magnitude/Duration at 230V: 20Ω: 6A/40ms
• Accuracy: ±3%rdg±4dgt (*1)
• Function: PFC
• Range (Auto-Ranging): 2000A/20kA
