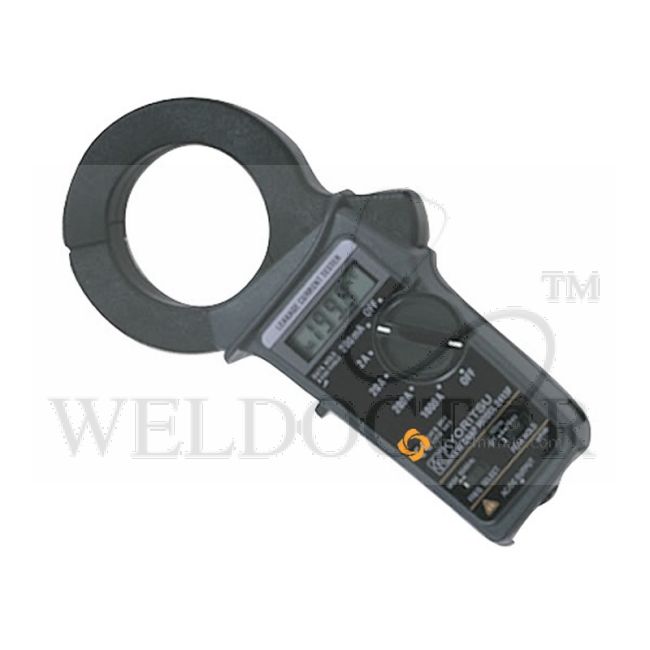

KYORITSU LEAKAGE CLAMP METER 2413F
Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement. Frequency filter switch to eliminate the effect of harmonics. Output terminal. Resolution 0.1mA.
Availability:
In stock
SKU
WOW-1951
Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement. Frequency filter switch to eliminate the effect of harmonics. Output terminal. Resolution 0.1mA.
Specifications:
- AC A (50/60Hz): 200mA/2/20/200A/1000A
- AC A (WIDE): 200mA/2/20/200/1000A
- Conductor Size: Ø68mm Max.
- Frequency response: 40Hz - 1kHz
- Effect of external stray magnetic field Ø15mm 100A: 10mA AC Max.
- Output: WaveForm :
- Applicable Standards: IEC 61010-1 CAT III 300V
- Power source: 6F22 (9V) &Times 1 *Continuous measuring Time: Approx. 60 hours
- Dimension: 250(L) &Times 130(W) &Times 50(D)mm
- Weight: 570g approx.
