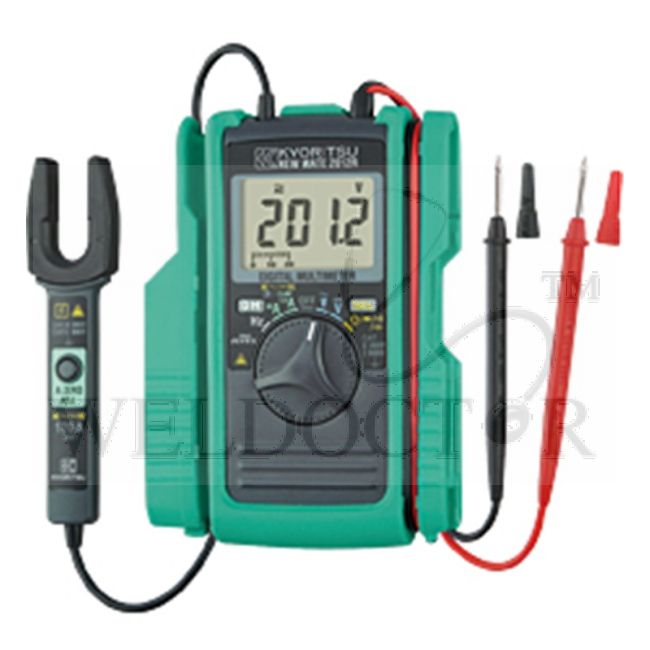

KYORITSU DIGITAL MULTIMETER 2012RA

Innovative Multhimeters with current measurements up to 120A AC/DC Unique Open Jaw technology for AC/DC current measurements Very compact and as reliable as a tradictional full size multimeter

Specifications:

• DC V: 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
• AC V: 6.000/60.00/600.0V (Input impedance: approx.10MΩ)
• DC A: 60.00/120.0A
• AC A: 60.00/120.0A
• Ω: 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
• Continuity buzzer: Buzzer sounds beLow 35±25Ω
• Diode test: 2V±3.0%rdg±5dgTopen-loop Voltage: approx. 2.7V
• Capacitance: 400.0nF/4.000/40.00µF
• Frequency (AC A): 100/400Hz
• Frequency (DC A): 100/1000Hz/10/100/300.0kHz
• Conductor Size: Ø12mm Max.
• WithStand Voltage: 3540V AC For 5 Seconds
• Applicable Standards: IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
• Power source: R03 (1.5V) &Times; 2
• Dimension: 128 (L) &Times; 92 (W) &Times; 27 (D) mm
• Weight: 220g approx. (including batteries)
