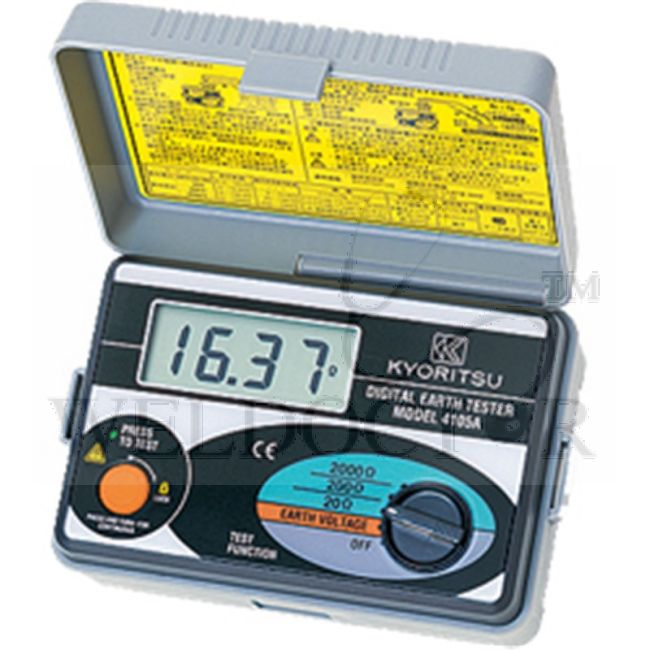

KYORITSU DIGITAL EARTH METER 4105A-H

Dust and drip proof.(designed to IEC 60529 IP54) In addition to the facility for precision measurement, test leads for simplified two wire easuring system also supplied as standard accessories. (unit can be hung from the neck for simplified measurement) Designed to meet IEC 61010-1 safety standard. Capable of measuring earth voltage. Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance. Small and lightWeight. Shock resistant new case material. 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Specifications:

• Measurement ranges: Earth Resistance: 0 - 20Ω/0 - 200Ω/0 - 2000Ω
• Accuracy: Earth Resistance: ±2%rdg±0.1Ω (20Ωrange)
• OverLoad protection: Earth Resistance: 280V AC For 10 Seconds
• Applicable Standards: IEC 60529 IP54
• Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557
• Power source: R6 (AA) (1.5V) &Times 6
• Dimension: 105(L) &Times 158(W) &Times 70(D)mm
• Weight: 550g approx.
• Included Accessories: 7095A (Earth resistance test leads) &Times 1set
