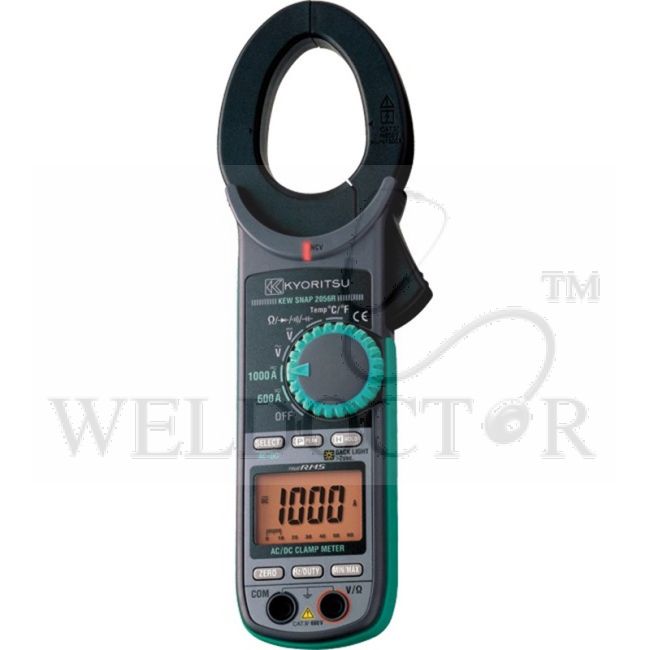

KYORITSU DIGITAL CLAMP METER 2056R

Designed to meet international safety standard IEC 61010-1 CAT IV 600V. CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits. Very useful for power distribution companies, power utilities and maintenance fields. True RMS enables an accurate measurement.

Specifications:

• AC A: 0 - 600.0/1000A
• DC A: 0 - 600.0/1000A
• AC V: 6/60/600V
• DC V: 600m/6/60/600V
• Ω: 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
• Continuity buzzer: Buzzer Sounds at 100Ω
• Temperature: -50ºC - +300ºC (With the use of Temperature probe 8216)
• Frequency/DUTY: 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
• Conductor Size: Ø40mm
• Safety Standard: IEC 61010-1 CAT IV 600V,
• Power source: R03 (1.5V) (AAA) &Times 2
• Dimension: 254(L) &Times 82(W) &Times 36(D)mm
• Weight: 310g
• Included Accessories: 7066A (Test leads)
• Optional Accessories: 8008 (Multi-Tran)
