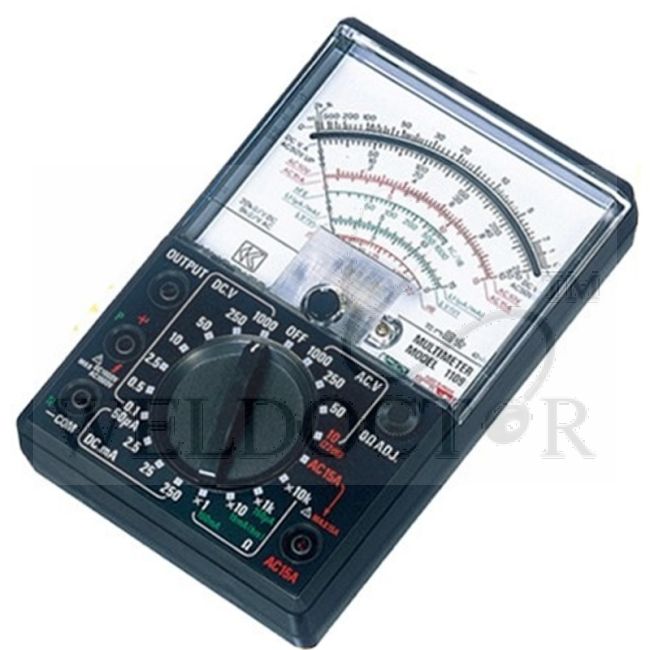

KYORITSU DIGITAL ANALOG MULTIMETER 1109
Mirrored scale for easy and accurate reading. Fuse and diode protected circuit (except 15A AC range). Output terminal to cut off DC component when measuring AC voltage. Safety designed input terminals and test leads.
Availability:
In stock
SKU
WOW-2108
Mirrored scale for easy and accurate reading. Fuse and diode protected circuit (except 15A AC range). Output terminal to cut off DC component when measuring AC voltage. Safety designed input terminals and test leads.
Specifications:
- DC V: 0.1/0.5/2.5/10/50/250/1000V
- AC V: 10/50/250/1000V (9kΩ/V)
- DC A: 50µA/2.5/25/250mA
- AC A: 15A
- Ω: 2/20kΩ/2/20MΩ
- Decibel: -10 - +62dB
- hFE: 0 - 1000 (Ω &Times 10)
- WithStand Voltage: 6000V AC For 1 Minute
- Power Source: R6 (AA) (1.5V) &Times 2
- Dimension: 150(L) &Times 100(W) &Times 47(D)mm
- Weight: 330g approx.
