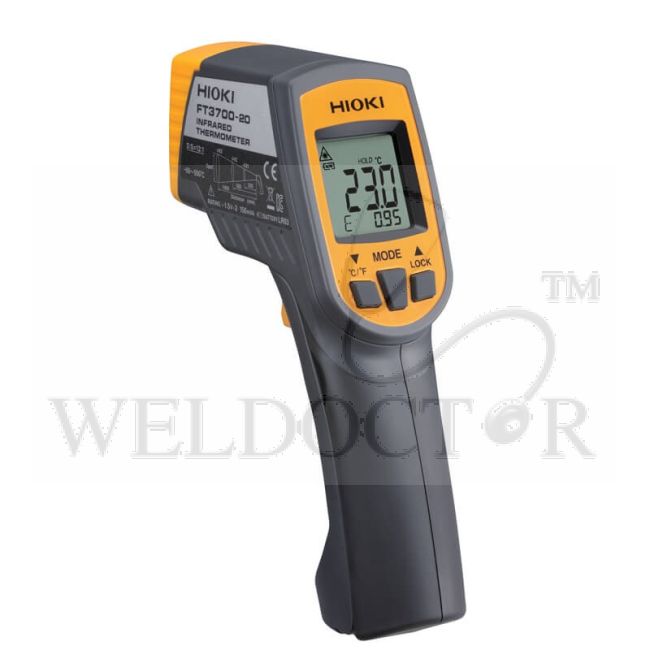

HIOKI INFRAFED THERMOMETER FT3700-20

The FT3700 is non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.

Specifications:

• Measurement Temperature range: -60.0 to 550.0 ˚C (-76 to 1022 ˚F), 0.1 ˚C resolution
• Accuracy: -35.0 to -0.1 ˚C (-31.0 to 31.9 ˚F) : ±10 %rdg. ±2 ˚C
• Response Time: 1 sec (90%)
• Measurement waveLength: 8 to 14 µm
• Thermal emissivity compensation: ε=0.10 to 1.00 (0.01 step)
• Measurement field diameter: ε=0.10 to 1.00 (0.01 step)
• Sighting: Two-beam laser marker Max 1 mW (class 2), Red
• Functions: Continuous measurement mode, Max/ Min/ DIF (Max - Min)/ AVG measurement, Alarm, Backlight, Auto Power-off
• Power supply: LR03 (AAA) alkaline Battery &Times;2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF)
• Dimension and mass: 48 mm (1.89 in) W &Times; 172 mm (6.77 in) H &Times; 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries)
• Name: File Type
• HIOKI INFRARED THERMOMETER FT3700 Manual: .pdf
