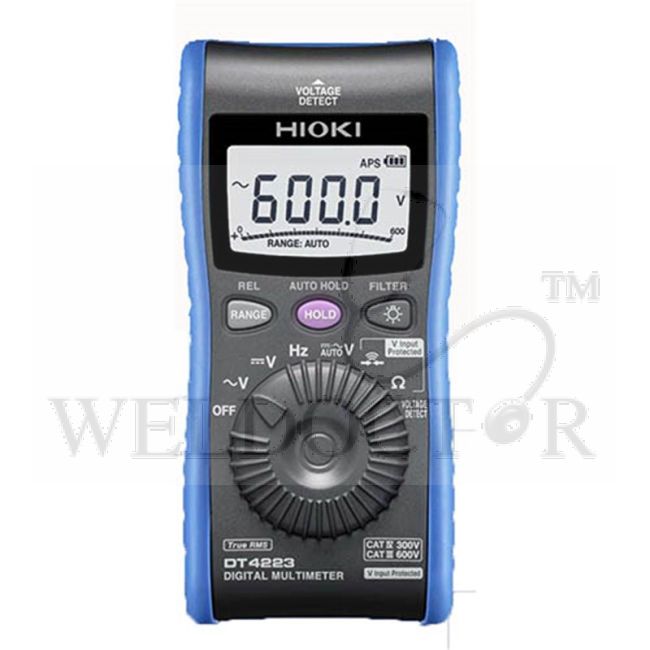

HIOKI DIGITAL MULTIMETER DT4223

The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.

Specifications:

• DC Voltage: 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
• AC Voltage: 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
• Resistance: 600.0 Ω to 60.00 MΩ, 6 ranges
• C (capacitance): N/A
• Frequency: AC V measurement: 99.99 Hz (5 Hz or More) to 9.999 kHz, 3 ranges
• Continuity check: Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or More Response Time: 0.5 ms or More
• Diode test: N/A
• Voltage detection: 80 V to 600 V AC
• Other functions: Circuit breaker false trip prevention function, Filter function, Display value hold, Relative display, Auto-Power save
• Display: Main and Sub displays: 4-digits LCD, Max. 6000 digits, bar graph
• Display refresh rates: 5 Times/s (Capacitance measurement: 0.05 to 5 Times/s, depending on measured value, Frequency: 1 to 2 Time/s )
• Power supply: LR03 alkaline batteries &Times;4, Continuous use: 35 hours (backlight OFF)
• Dimension and mass: 72 mm (2.83 in)W &Times; 149 mm (5.87 in)H&Times; 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
• Name: File Type
• Hioki DIGITAL MULTIMETER Manual: .pdf
