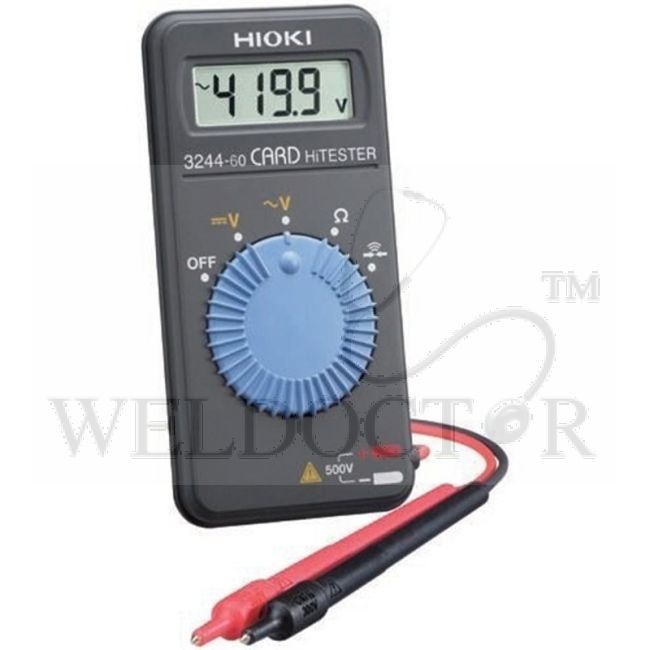

HIOKI DIGITAL MULTIMETER 3244-60

The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.

Specifications:

• DC Voltage: 419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt.
• AC Voltage: 4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
• Resistance: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
• Continuity buzzer: Detection level 50 Ω ±40 Ω, Diode check: Not available
• Auto Power save: Available (cancel selectable)
• Display: Digital LCD, Max. 4199 digits
• Sampling rate: 2.5 Times/sec
• Power supply: Coin Type Lithium Battery (CR2032) &Times;1, Continuous use: 150 hours
• Dimension and mass: 55 mm (2.17 in) W &Times; 109 mm (4.29 in) H &Times; 9.5 mm (0.37 in) D, 60 g (2.1 oz)
• Name: File Type
• Hioki 3244-60 Manual: .pdf
