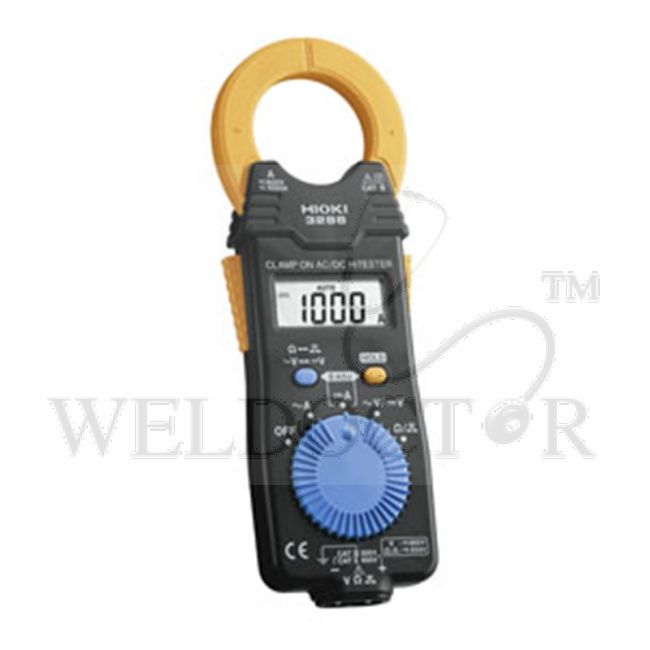

HIOKI CLAMP ON AC/DC TESTER 3288

Hioki clamp meters are best-in-class measuring devices incorporating Hiok expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

Specifications:

• DC Current: 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
• AC Current: 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
• DC Voltage: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
• AC Voltage: 4.199 V to 600 V, 4 ranges,
• Resistance: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
• Crest factor: N/A
• Other functions: Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto Power save, Auto zero (DC A)
• Display: LCD, Max. 4199 dgt., Display refresh rate: 2.5 Times/s
• Power supply: Coin Type Lithium Battery (CR2032) &Times;1, Continuous use 60 hours
• Core jaw dia.: φ 35 mm (1.38 in)
• Dimension and mass: 57 mm (2.24 in) W &Times; 180 mm (7.09 in) H &Times; 16 mm (0.63 in) D, 150 g (5.3 oz)
• Accessories: Instruction manual &Times;1, Test Lead L9208 &Times;1, Carrying Case 9398 &Times;1
• Name: File Type
• Hioki 3288 Manual: .pdf
