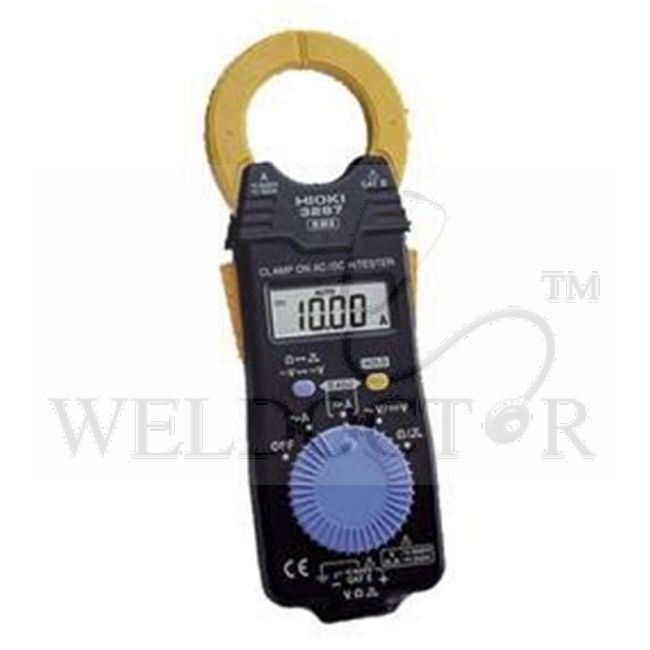

HIOKI CLAMP ON AC/DC TESTER 3287

Hioki clamp meters are best-in-class measuring devices incorporating Hioki expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

Specifications:

• DC Current: 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
• AC Current: 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
• DC Voltage: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
• AC Voltage: 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
• Resistance: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
• Crest factor: 2.5 or less (150 A, 1000 V Max.)
• Other functions: Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto Power save, Auto zero (DC A)
• Display: LCD, Max. 4199 dgt., Display refresh rate: 2.5 Times/s
• Power supply: Coin Type Lithium Battery (CR2032) &Times;1, Continuous use 25 hours
• Core jaw dia.: φ 35 mm (1.38 in)
• Dimension and mass: 57 mm (2.24 in) W &Times; 180 mm (7.09 in) H &Times; 16 mm (0.63 in) D, 170 g (6.0 oz)
• Name: File Type
• Hioki 3287 Manual: .pdf
