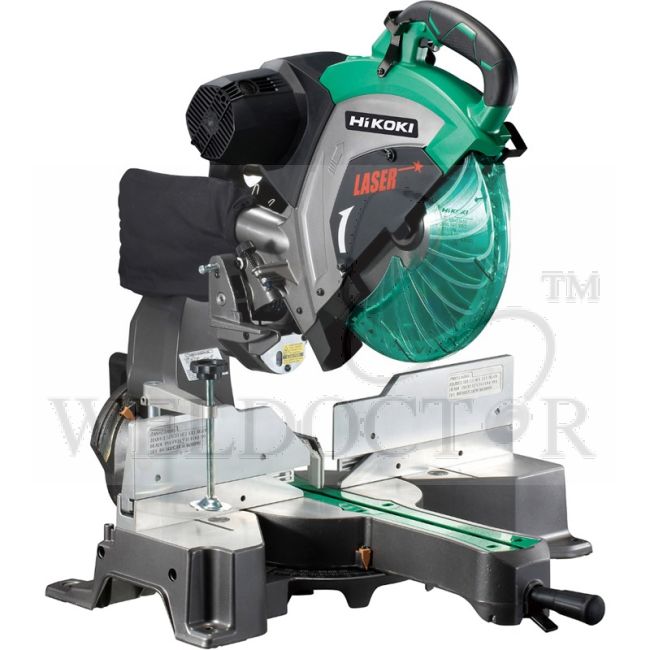

HIKOKI 305MM (12") SLIDE COMPOUND MITER SAW, 1520W, C12RSH2

Compact slide system with large cutting capacity Fixed rail slide design needs no clearance at rear 630mm wide base Sliding sub fence for stable cutting of large workpieces Adjustable laser marker for accurate cutting Fine adjustment of mitre and bevel angles High dust collection performance Dual bevel feature cuts up to 45° left and right Mitre cuts up to 57° right and 45° left Positive mitre angle stops at 0°, 15°, 22.5°, 31.6° and 45°

Brand: HiKOKI

Specifications:

• Blade Dia.: 305mm (12")
• Cross Cut 0° (H x W): 105 x 312mm (4-1/8 x 12-1/4")
• Miter Left/Right 45° (H x W): 105 x 220mm (4-1/8 x 8-5/8")
• Bevel Left 45° (H x W): 68 x 312mm (2-5/8 x 12-1/4")
• Bevel Right 45° (H x W): 43 x 312mm (1-11/16 x 12-1/4")
• Bevel (Left) 45° + Miter (Left) 45° (H x W): 68 x 220mm (2-5/8 x 8-5/8")
• Bevel (Left) 45° + Miter (Right) 31° (H x W): 68 x 265mm (2-5/8 x 10-7/16")
• Bevel (Right) 45° + Miter (Right) 45° (H x W): 43 x 220mm (1-11/16 x 8-5/8")
• Bevel (Right) 45° + Miter (Left) 31° (H x W): 43 x 265mm (1-11/16 x 10-7/16")
• Power Input: 1,520W
• No Load Speed: 4,000/min.
• Miter Angle: Right: 0-57° Left: 0-45°
• Bevel Angle: Right: 0-45° Left : 0-45°
• Positive Miter Angle Stops: 0, 15, 22.5, 31.6 and 45°
• Dimensions: 655 x 890 x 724mm (25-25/32 x 35-3/64 x 28-1/2")
• Weight: 27kg (59.5lbs.) without the cord
