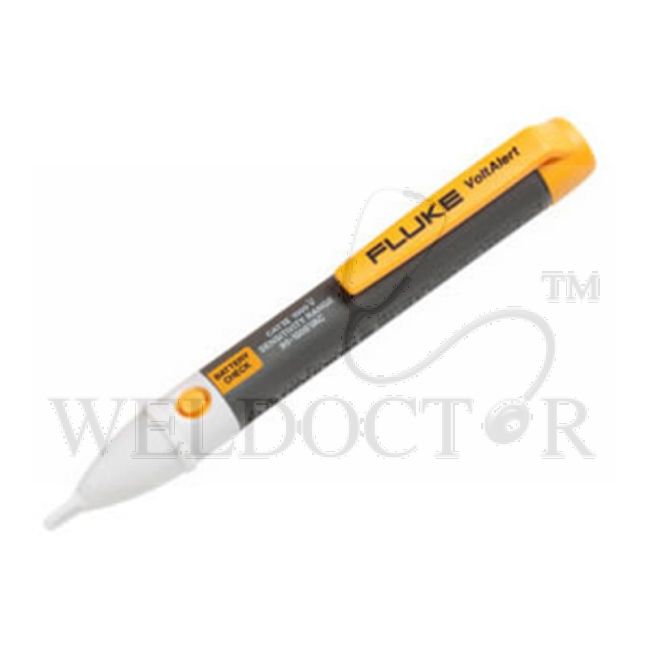

FLUKE VOLTAGE DETECTOR 2AC

2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family from Fluke and is designed to be pocket-sized and easy to use. The 2AC tests for energized circuits and defective grounds, whether it's for an electrician on the factory floor or the do-it-yourselfer around the house. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present.

Specifications:

• Operating Principles: Senses the steady state electrostatic field produced by AC Voltage through insulation without requiring contact to the bare conductor. A red gLow at the tip indicates the presence of Voltage.
• Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
• EMC Compliance: Meets IEC 61326-1:2006
• Operating: 90 V AC to 1000 V AC, CAT IV 1000 V Rated
• Temperature (Operating and Storage): -10°C to 50°C (-14°F to 122°F)
• Operating Humidity Ranges: 0% to 95% (0°C to 30°C)
• Altitude: 2000 m (CAT IV 1000 V)
• Cleaning: Clean with damp cloth
• Battery Life: Typical Battery life of greater than one year
• Name: File Type
• Fluke 2AC Instruction Sheet: .pdf
• Fluke 2AC Data Sheet: .PDF
