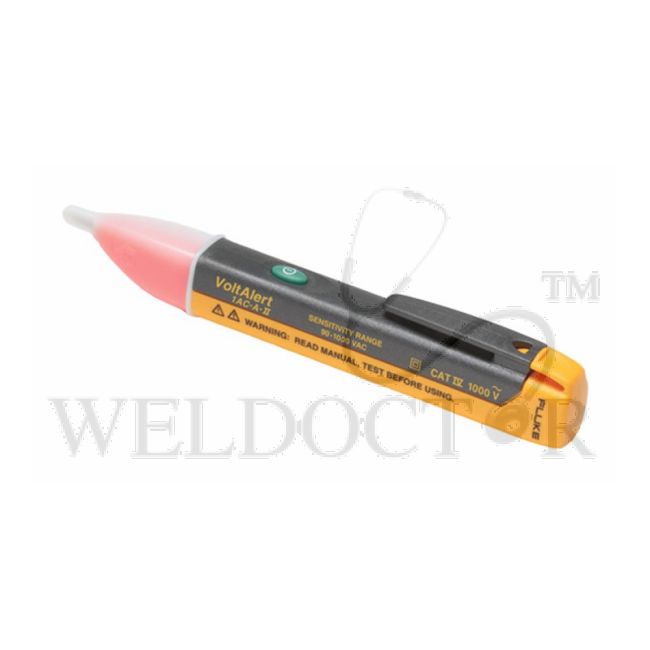

FLUKE VOLTAGE DETECTOR 1AC-A1-II

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

Specifications:

• Operating Principles: Senses the steady state electrostatic ?eld produced by AC Voltage through insulation without requiring contact to the bare conductor. A red gLow at the tip and a beeping Noise (if Not switched OFF) indicates the presence of Voltage.
• Voltage sensing ranges: NoMinAlly, 90 V AC to 1000 V AC
• Detector tip style: Flat-tip
• Light source: One Hgh intensity red LED
• Agency Approvals: c CSA us, CE, C-Tick
• Safety Rating: 1000 V, CAT IV
• Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
• EMC Compliance: Meets IEC 61326-1:2006
• IP Rating: IP 40
• Operating Temperature: -10°C to 50°C (-14°F to 122°F)
• Operating Humidity Ranges: 0% to 95% (0°C to 30°C)
• Operating Altitude: 3000 m
• Cleaning: Clean with damp cloth
• Batteries: 2 AAA alkaline batteries included
• Name: File Type
• Fluke 1AC II Instruction Sheet: .pdf
• Fluke 1AC II Data Sheet: .PDF
