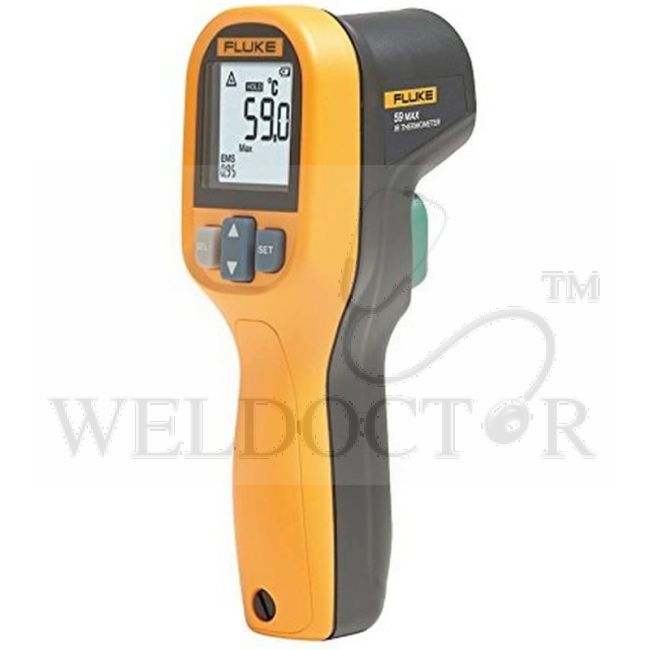

FLUKE INFRARED THERMOMETER 59 MAX

The Fluke 59 MAX Infrared Thermometer is a precision thermometer that delivers accurate, repeatable measurements and still fits within your budget. Use the bright backlit LCD display on the Fluke 59 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, and vents.

Specifications:

• Temperature Range: -30°C to 350°C (-22°F to 662°F)
• Accuracy (Calibration geometry with ambient temperature 23°C ±2°C): ≥ 0°C
• Response Time (95%): < 500 ms (95% of reading)
• Spectral Response: 8 mm to 14 mm
• Emissivity: 0.10 to 1.00
• Distance to Spot Ratio: 8:1 (calculated at 90% energy)
• Display Resolution: 0.1°C (0.2°F)
• Repeatability (% of reading): ±1.0% of reading or ±1.0°C
• Power: 1 AA IEC LR06 Battery
• Battery Life: 12 hours with laser and backlight on
• Weight: 220 g (7.76 oz)
• Size: 156 x 80 x 50 mm (6.14 x 3.15 x 2 in)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F), (without battery)
• Operating Humidity: 10% to 90% RH non-condensing @ 30°C (86°F)
• Operating Altitude: 2000 meters above mean sea level
• Storage Altitude: 12,000 meters above mean sea level
• Drop Test: 1 m
• Ingress Protection Rating: IP40 per IEC 60529
• Vibration and Shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
• Compliance: EN/IEC 61010-1
• Laser Safety: FDA and EN 60825-1 Class II
• Electromagnetic Compatibility: 61326-1 EN 61326-2
• Name: File Type
• Fluke 59max/59max+ Technical Data Sheet: .pdf
• Fluke 59max/59max+ Users Manual: .pdf
