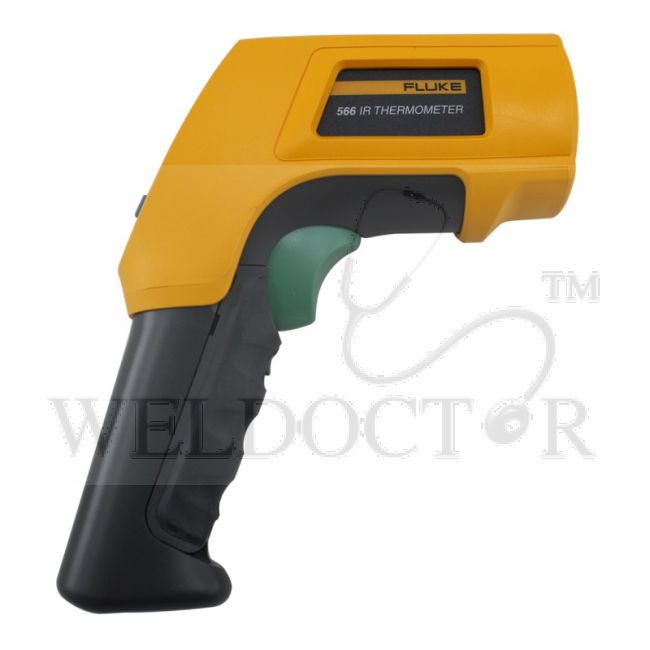

FLUKE INFRARED THERMOMETER 566

The Fluke 566 two-in-one contact and non contact thermometer can stand up to tough industrial, electrical, and mechanical environments.

Specifications:

• Infrared Temperature range: -40°C to 650°C (-40°F to 1202°F)
• Infrared accuracy: < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);
• Display resolution: 0.1°C / 0.1°F
• Infrared spectral response: 8 µm to 14 µm
• Infrared response Time: < 500 msec
• Thermocouple Type-K input Temperature range: -270°C to 1372°C (-454°F to 2501°F)
• Thermocouple Type-K input accuracy: -270°C to -40°C
• D:S (distance to measurement spot Size): 30:01:00
• Laser sighting: Single-point laser < 1 mw Output Class 2 (II) operation, 630 nm to 670 nm
• Minimumspot Size: 19 mm (0.75 in)
• Emissivity adjustment: By built-in table of common Materials or digitAlly adjustable from 0.10 to 1.00 by 0.01
• Data storage with date/Time stamp: 20 points
• PC interface and cable: None
• Hi/Low alarms: Audible and two-Colour visual
• Min/Max/Avg/Dif: Yes
• Display: Dot matrix 98 x 96 pixels with function menus
• Backlight: Two levels, Normal and extra bright For darker environments
• Trigger lock: Yes
• Switchable Celsius and Fahrenheit: Yes
• Power: 2 AA/LR6 Batteries
• Battery life: If used continuously
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-40°F to 140°F)
• Bead thermocouple Type-K range: -40°C to 260°C (-40°F to 500°F)
• Bead thermocouple Type-K accuracy: ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F),
• Name: File Type
• Fluke 56x (561, 566, 568) Users Manual: .pdf
