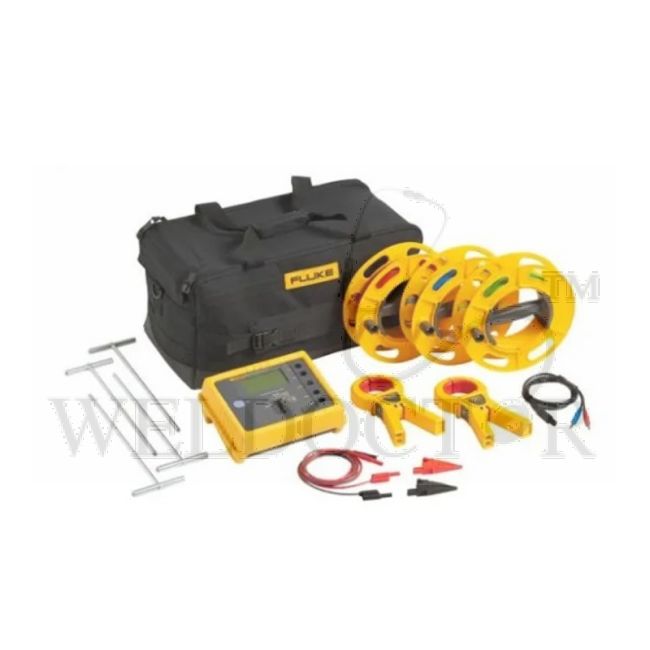

FLUKE EARTH GROUND TESTER 1623-2

The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time. Fluke 1623-2 GEO Earth Ground Tester summary 3- and 4-pole Fall-of-Potential, earth resistance loop testing 4-pole Soil Resistivity testing Selective earth ground rod testing using 1 clamp Stakeless earth ground rod testing using 2 clamps IP56 rated for outdoor use Rugged carrying case USB data storage and transfer

Specifications:

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -30°C to 60°C (-22°F to 140°F)
• Temperature coefficient: ±0.1% of reading/°C < 18°C > 28°C
• Intrinsic error: Refers to the reference Temperature range and is guaranteed For 1 year
• Operating error: Refers to the operating Temperature range and is guaranteed For 1 year
• Climatic class: C1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
• Protective Type: IP56 For case, IP40 For Battery door according to EN60529
• Safety: Protection by double and/or reinForced insulation. Max. 50 V to earth. IEC61010-1: 300V CAT II, Pollution degree 2
• EMC (emission immunity): IEC61326-1: Portable
• Quality system: Developed, designed and manufactured according to DIN ISO 9001
• External Voltage: V ext, Max = 24 V (DC, AC < 400 Hz), measurement inhibited For Hgher values
• V ext rejection: > 120 dB (162⁄3, 50, 60, 400 Hz)
• Measuring Time: Typical 6 Seconds
• Max. overLoad: 250 V rms (pertains to misuse)
• Auxiliary Power: 6 x 1.5 V Alkaline (Type AA LR6)
• Battery life span: Typical > 3,000 measurements
• Dimension (W x H x D): 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
• Name: File Type
• Fluke 1623-2 Users Manual: .pdf
• Fluke 1623-2/1625-2 Technical Data Sheet: .PDF
