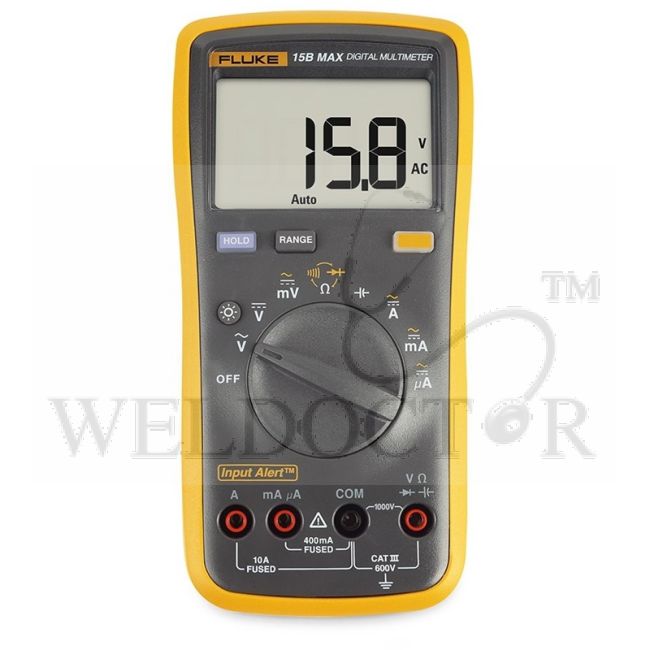

FLUKE DIGITAL MULTIMETER 15B MAX

Fluke 15B MAX Inherits and continues the classic design of 15B+, with further improved functions: Input Alert Alarm, Simple interface to wake meter from sleep mode by activating any buttons, test leads with fine probes to help electricians and electronic R&D personnel make accurate measurements.

Specifications:

• AC Volts (40 Hz to 500 Hz): 6.000 V
• AC Millivolts: 600.0 mV
• DC Volts: 6.000 V
• DC Millivolts: 600.0 mV
• AC Current μA (40 Hz to 400 Hz): 400.0 μA
• AC Current mA (40 Hz to 400 Hz): 40.00 mA
• AC Current A (40 Hz to 400 Hz): 4.000 A
• DC Current μA: 400.0 μA
• DC Current mA: 40.00 mA
• DC Current A: 4.000 A
• Diode Test: 2.000 V
• Temperature: 50.0 °C to 400.0 °C
• Resistance (Ohms): 400.0 Ω
• Capacitance: 40.00 nF
• Frequency1 (10 Hz to 100 kHz): 50.00 Hz
• Duty Cycle: 1% to 99%
• Continuity Threshold: —
• Backlight: —
• Name: File Type
• Fluke 15B Max Technical Data Sheet: .pdf
• Fluke 15B Max/17b Max Users Manual: .pdf
