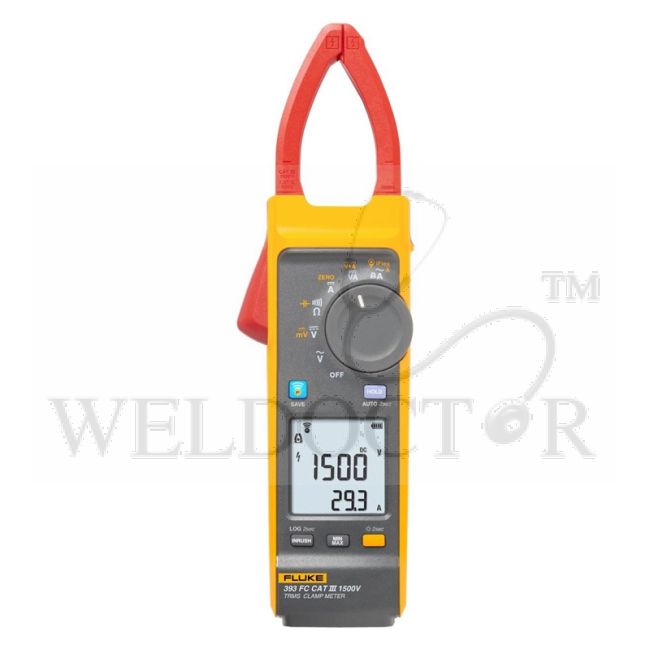

FLUKE 393 FC SOLAR CLAMP METER CAT III 1500 V

The Fluke 393 FC CAT III 1500 V True-rms Solar Clamp Meter with iFlex is designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage DC environments: PV arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp meter will measure up to 1500 V DC and 1000 V AC with test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex flexible current probe extends AC current measurements up to 2500 A. The 393 has a thin jaw, giving you access to cables in crowded combiner boxes. Plus, the test leads are designed with your work in mind, and are also rated to CAT III 1500 V DC.

Specifications:

• AC: 1000 V
• DC: 1500 V
• Batteries: 2 AA IEC LR6 alkaline
• Display: Dual display with backlight
• Automatic Power Off: 20 minutes
• Temperature Coefficients: Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
• Range: 999.9 A
• Resolution: 0.1 A
• Accuracy: 2 % + 5 digits (10 Hz to 100 Hz)
• Crest Factor (50/60 Hz): 2.5 @600.0 A
• Resolution: 0.1 A (≤999.9 A)
• Accuracy: 3 % RD + 5 digits (10 Hz to 500 Hz)
• Crest Factor (50/60Hz): 2.5 @1400 A
• Distance from Optimum: i2500-10 Flex
• A: 0.5 in (12.7 mm)
• B: 0.8 in (20.3 mm)
• C: 1.4 in (35.6 mm)
• Accuracy: 2 % RD + 5 digits[1]
• Range: 600.0 V
• Resolution: 0.1 V (≤600.0 V)
• Accuracy: 1 % RD + 5 digits (20 Hz to 500 Hz)
• Accuracy: 1 % RD + 5 digits
• Range: 500.0 mV
• Resolution: 0.1 mV
• Range: 5.0 Hz to 500.0 Hz
• Resolution: 0.1 Hz
• Accuracy: 0.5 % RD + 5 digits
• Trigger Level: 5 Hz to 10 Hz, ≥10 A
• Trigger Level: 5 Hz to 20 Hz, ≥25 A
• Trigger Level: 5 Hz to 20 Hz, ≥5 V
• Range: 600.0 kVA (600.0 V dc range)
• Resolution: 0.1 kVA
• Accuracy: 2 % RD + 2.0 kVA
• Range: 600.0 Ω
• Resolution: 0.1 Ω (≤600.0 Ω)
• Range: 100.0 μF
• Resolution: 0.1 μF (≤100.0 μF)
• Inrush Trigger Level: 5 A
• Size (L x W x H): 281 mm x 84 mm x 49 mm
• Weight (with batteries): 520 g
