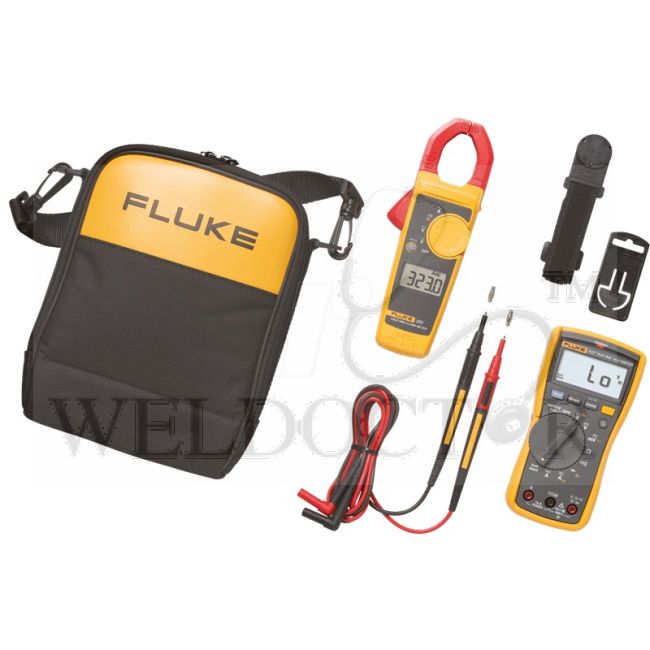

FLUKE 117/323 MULTIMETER AND CLAMP METER COMBO KIT

Having the right tools for the job is essential. Having them when you need them is even better. Arrive on every jobsite prepared with the Fluke 117/323 electricians multimeter and clamp meter combo kit. The two test tools give you the power of a versatile, rugged multimeter combined with a fast-acting, general-purpose clamp meter. Whether you work in residential electricity or commercial electrical, both of these test tools are a good fit for the work you need to complete. The kit includes Fluke 117 digital multimeter Fluke 323 clamp meter Tl175 test leads TPAK ToolPak magnetic meter hanger Soft carrying case The Fluke 117 digital multimeter is built to make your life easier with features like: Non-contact voltage detection AutoV/LoZ function Min/Max/Average readings Frequency measurements Capacitance measurements In order to ensure you’re ready to go on many jobsites, the 117 is certified for use in CAT III 600 V environments. The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes true rms measurements, optimized ergonomics and a large display for efficient troubleshooting. The small clamp is designed to make measurements in tight cable compartments easier on you and it’s ideally suited for current measurements up to 400 A or voltage measurements up to 600 V. Together, the Fluke 117 Electrician’s Multimeter and 323 True-rms Clamp Meter give electricians easy to use, time-saving tools for your work.

Specifications:

• Maximum voltage between any terminal and earth ground: 600 V
• Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
• Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
• Display: Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery life: 400 hours typical, without backlight
• DC millivolts: Range/Resolution
• DC volts: Range/Resolution
• Auto volts: Range/Resolution
• AC millivolts¹ True RMS: Range/Resolution
• AC volts¹ True RMS: Range/Resolution
• Continuity: Range/Resolution
• Ohms: Range/Resolution
• Diode test: Range/Resolution
• Capacitance: Range/Resolution
• Lo-Z capacitance: Range
• AC amps True RMS (45 Hz to 500 Hz): Range/Resolution
• DC amps: Range/Resolution
• Hz (V or A input)²: Range/Resolution
• AC current: Range
• AC voltage: Range
• DC voltage: Range
• Resistance: Range/Resolution
• Continuity: ≤ 70 Ω
• AC response: True RMS
• Data hold: Yes
• Size: H x W x D (mm)
• Category rating: CAT III 600 V
