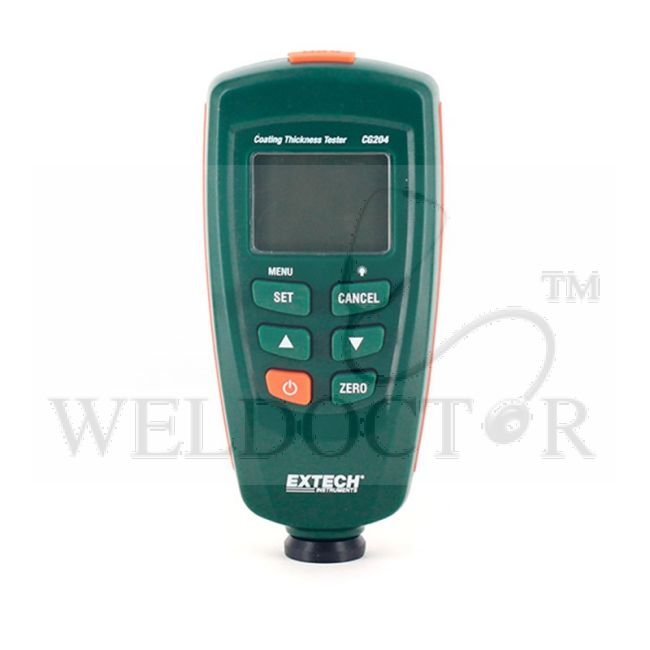

EXTECH COATING THICKNESS GAUGE CG204

The CG204 is a portable meter designed for noninvasive coating thickness measurements. The tester uses dual technology that provides automatic recognition of ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. Featuring two measuring modes: Single and Continuous, 400 reading memory storage and user-programmable high/low alarms. Comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.

Specifications:

• Specifications: Ferrous Probe (magnetic induction)
• Range (Max res): 0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
• Basic Accuracy: ±3%
• Min. Curvature Radius: 1.5mm (59.06mils)
• MinimumDiameter: 7mm (275.6mils)
• MinimumThickness: 0.5mm (19.69mils)
• Dimension/Weight: 4.7x2.4x1.25" (120x6 x32mm)/ 6.17oz (175g)
• Name: File Type
• Extech CG204 Data Sheet: .pdf
• Extech CG204 Manual: .pdf
