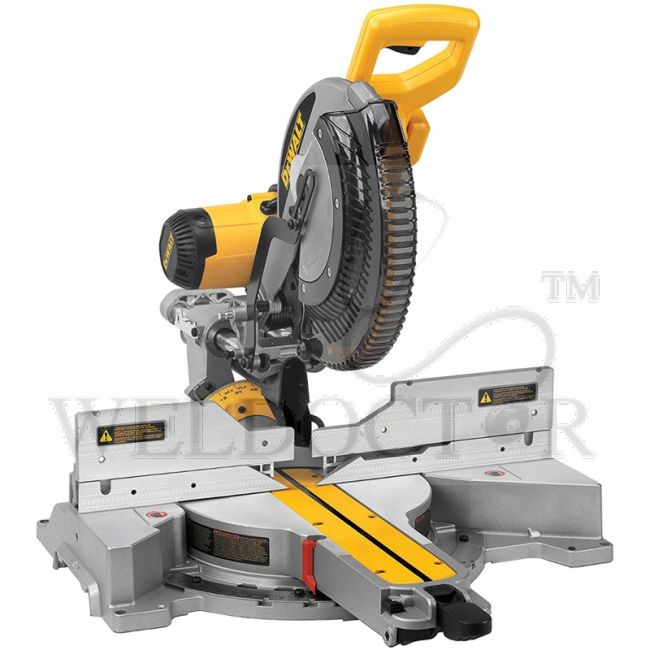

DEWALT DOUBLE BEVEL COMPOUND MITRE SAW 12",305MM DWS780

Integrated CUTLINE(TM) Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility Powerful 15 amp, 3,800 rpm motor delivers extended power and durability Super efficient dust collection system captures over 75% of dust generated Tall sliding fences support crown molding up to 7-1/2 inch nested and base molding up to 6-3/4 inch vertically against the fence while easily sliding out of the way for bevel cuts Exclusive back fence design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45° Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy Miters 60° to the right and 50° to the left providing increased capacity Oversized bevel scale makes bevel angle adjustments accurate and easy Compact, lightWeight design (56 lbs.) allows for easy transport and storage Cam lock miter handle with detent override deliver quick and accurate miter angles Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw Innovative gearbox and belt-drive design increases vertical cutting capacity Precise miter system and machined base fence support optimize durability and cutting accuracy

Brand: Dewalt

Specifications:

• 45° BEVEL CUT Capacity (DimensionAL LUMBER): 2X14 (2X16 WITH BACK FENCE)
• 45° MITER CUT Capacity (Max Height): 4X8
• 45° MITER CUT Capacity (Max WIDTH): 4X8
• 90° CROSS-CUT Capacity (DimensionAL LUMBER): 2X14 (2X16 WITH BACK FENCE) IN
• 90° CROSS-CUT Capacity (Max WIDTH): 16"
• AMPS: 15 AMPS
• ARBOR Size: 5/8" OR 1 IN
• Blade DIAMETER: 12"
• For METAL CUTTING: No
• For WOOD CUTTING: YES
• Handle Type: Top Handle
• HORIZONTAL Capacity: BASEBOARD LYING FLAT: 16 IN
• HORIZONTAL Capacity: CROWN MOLDING LYING FLAT: 13-3/4 IN
• No Load Speed: 3,800 RPM
• Power Tool Type: CORDED
• Tool Weight: 56 LBS
• Type OF MITER SAW: SLIDE
• VERTICAL Capacity: BASEBOARD AGAINST FENCE: 6-3/4 IN
• VERTICAL Capacity: CROWN MOLDING VERTICAllY NESTED: 7-1/2 IN
