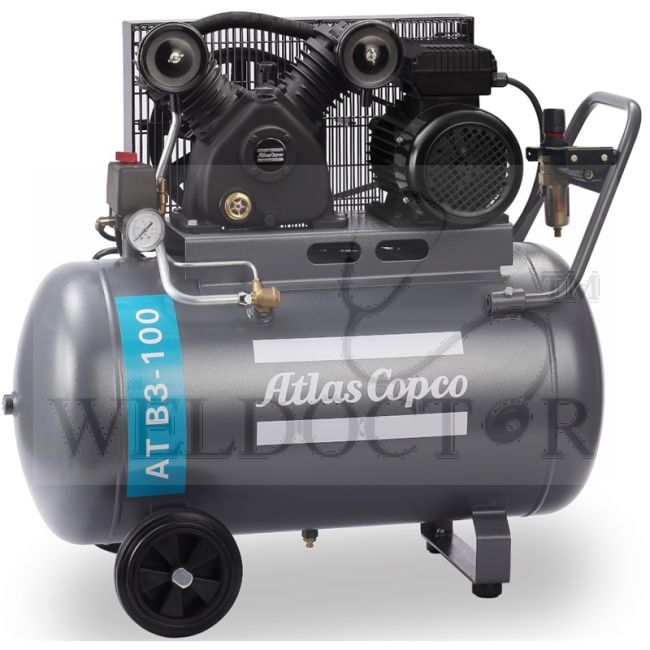

ATLAS COPCO AIR COMPRESSOR ATB3-100 - 3.0HP/100L (2.2KW) 240V/50HZ WITH MOM

The efficient ATB 3-100 minimises energy losses by the inclusion of stainless steel valves. The pumps are made of cast iron as well as the shaft and connecting rods for a more reliable piston air compressor. This unit includes a filter regulator and hand bar panel and is equipped with two solid rubber wheels and two rubber feet for easier use and movement. * Price includes PE inspection and registration of unit with MOM * Workplace Number is a compulsory information, it consists of (UEN+ 4 digits) eg. 123456789A0001 * User guide to check for existing workplace number is available at the "Downloads" tab, please check with MOM if you are unsure of this information. * To speed up the MOM registration process, you may want to prefill the registration form located at the "Downloads" tab and email to our customer service quoting your online order. * Please note that the delivery date may be extended if the details provided is not complete or inaccurate ** Product warranty is 1 year ** Re-inspection is required every 2 years, and has to be arranged & paid additionally

Specifications:

• Power: 3hp/2.2kW (240/1/50)
• Max pressure: 10 bar/145 psi
• Tank: 100L
• Pump displacement: 400 l/m /14.1 cfm
• Free air delivery: 290 l/m /10.2 cfm
• Current draw: 15 amp
• Noise: 73 dB (A)
• Cylinders/Stages: 2/1
• Motor speed: 1000 RPM
• Weight: 93kg
• Dimension: L920xW510xH840mm
